Maco Inline
Multipoint locking espagnolette for side hung or top hung applications with adjustable mushroom cams.
Designed for profiles with eurogroove, the Maco Inline Espagnolette is available in various non-croppable lengths with two backsets and three cam heights.

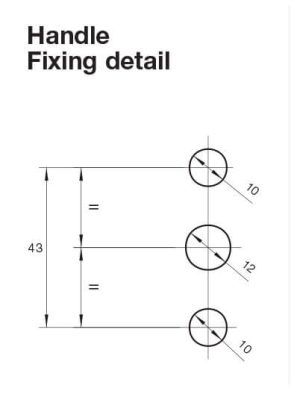

The Maco Inline Espagnolette is compatible with all standard espag handles with 43mm fixing centres with a 7mm square spindle.
MA58486,MA 58493,MA 58501,MA 58508,MA 58515,MA 58522,MA 58528,MA 58488,MA 58502,MA 58494,MA 58509,MA 58516,MA 58523,MA 58529,MA 204251,MA 58495,MA 58500,MA 58507,MA 58514,MA 58521,MA 58490,MA 58496,MA 58504,MA 58511,MA 58518,MA 58525,MA 58530,MA 58492,MA 58497,MA 58505,MA 58512,MA 58519,MA 58526,MA 58531,MA 204253,MA 58498,MA 58503,MA 58510,MA 58517,MA 58524,MA 204258
Features & Benefits
- Suitable for use on windows with a 16mm eurogroove
- Mushroom head cams aid security
- Adjustable locking cams
- Can be fitted in either a standard or shallow a eurogroove
- 7.7mm, 9mm or 10.5mm cam heights
- 20mm and 22mm backset versions available
- Available in sizes ranging from 100mm to 1200mm
- Keeps/striker plates are profile related, please phone for suitability
Technical Information
Product Codes and Specific features
Details
Maco Inline Espagnolette – 20mm backset version
| Length | 7.7mm Mushroom Height | 9mm Mushroom Height | 10.5mm Mushroom Height |
| 100 | MA 58486 | MA 58488 | MA 204251 |
| 260 | MA 58493 | MA 58494 | MA 58495 |
| 400 | MA 58501 | MA 58502 | MA 58500 |
| 600 | MA 58508 | MA 58509 | MA 58507 |
| 800 | MA 58515 | MA 58516 | MA 58514 |
| 1000 | MA 58522 | MA 58523 | MA 58521 |
| 1200 | MA 58528 | MA 58529 | - |
Maco Inline Espagnolette – 22mm backset version
| Length | 7.7mm Mushroom Height | 9mm Mushroom Height | 10.5mm Mushroom Height |
| 100 | MA 58490 | MA 58492 | MA 204253 |
| 260 | MA 58496 | MA 58497 | MA 58498 |
| 400 | MA 58504 | MA 58505 | MA 58503 |
| 600 | MA 58511 | MA 58512 | MA 58510 |
| 800 | MA 58518 | MA 58519 | MA 58517 |
| 1000 | MA 58525 | MA 58526 | MA 58524 |
| 1200 | MA 58530 | MA 58531 | MA 204258 |
Size capacity
100 to 1200mm espagnolette lengths
Manufactured from
Mild steel
Finish
Silver Chromate
Recommended screws
Espagnolette/Shootbolt – 4mm/No.8 countersunk head
Handle fitting – M5 machine screw or suitable alternative
Performance
(Full test details available on request.) Conforms to BS644, BS4873 and BS 7412: 2002 corrosion resistance, tested in accordance with BS EN 1670: 2007 Grade 5 Silver Chromate
When ordering please specify:
1. Espagnolette type 2. Sash size (preferably espagnolette length) 3. Backset size 4. Cam size 5. Profile name and number
Espagnolette dimensions
| Length | BS | A - mm | B - mm | C - mm | Length | BS | A - mm | B - mm | C - mm | |
| 100 | 20mm | N/A | N/A | N/A | 100 | 22mm | N/A | N/A | N/A | |
| 260 | 20mm | 58 | N/A | 164 | 260 | 22mm | 58 | N/A | 164 | |
| 400 | 20mm | 71 | N/A | 278 | 400 | 22mm | 71 | N/A | 278 | |
| 600 | 20mm | 71 | N/A | 498 | 600 | 22mm | 71 | N/A | 498 | |
| 800 | 20mm | 71 | N/A | 678 | 800 | 22mm | 71 | N/A | 678 | |
| 1000 | 20mm | 71 | 294 | 584 | 1000 | 22mm | 71 | 294 | 584 | |
| 1200 | 20mm | 71 | 394 | 684 | 1200 | 22mm | 71 | 394 | 684 |
