HRV10 Q Plus (Obsolete)

Mechanical Ventilation with Heat Recovery unit (MVHR)

The HRV10 Q Plus continuously running whole-house ventilation unit with heat recovery has been specifically designed to give improved performance over older models, in line with new build design requirements.

Combining extremely low power consumption and a highly efficient heat exchanger specifically designed to enhance SAP performance via Appendix Q and can be incorporated into larger apartments or dwellings.

The HRV10 Q Plus Range of MVHR unit comes in three different models; our ‘A’ model which is our basic version and our ‘HMB’ & ‘B’ models which are part of our Eco version range. Each set out to accommodate our customers’ needs.

Recognised and listed in the UK Product Characteristics Database and includes intelligent humidity options through controller options.

TP440A,TP440HMB,TP480B,TP480BC

Features & Benefits

Extremely low Specific Fan Power; down to 0.52 W/l/s
Highly efficient heat exchanger; up to 91%
Airflow up to 111 l/s (399 m³/h) at 100 Pa
Lightweight EPP construction giving high levels of thermal insulation
Accepts 150mm diameter ducting
Independent fan adjustment
Intelligent frost protection, stepped reduction of supply air rates prevents HRV unit from freezing
Setback facility to reduce ventilation where local regulations allow
Fully adjustable boost overrun timer 0-60 minutes; can be used with non-latching (momentary) switches to prevent unit from being accidentally left in boost mode
EPP moulded 150mm low resistance insulated port adaptors included as standard
EPP version lightweight for easy handling
Volt free switching control
Pleated ISO Coarse 65% (G4) filters as standard. ISO ePM1 55% (F7) on request (Standard unit only)
Available in EPP or Zintec sheet steel casing
Quick fix mounting bracket
IP32 rating
Patented features
Effective in reducing pollutants in the home and improving Indoor Air Quality (IAQ), therefore reducing the risk of Toxic Home Syndrome

Technical Information

Product Codes and Specific features

Product Codes and Specific Features

Basic version;

Summer Mode

Product Model	Product Code	Energy Rating
HRV10 Q Plus	TP440A	Energy Rating A

Eco versions;

Eco HMB Models;

Intelligent Summer Bypass & humidity controls
SUMMERboost® facility
Compatible with auralite® HRV (TP518) status indicator and aura-t™ (TP539) controller
Intelligent controller, quick and easy to commission

Product Model	Product Code	Energy Rating
HRV10 Q Plus HMB Eco auralite® & aura-t^TM ready	TP440HMB	Energy Rating A

Eco B Models;

Intelligent Summer Bypass & humidity controls
SUMMERboost® facility
Compatible with Eco-aura range; aurastat®, auramode® and aura-t™ (TP536) controllers and auralite® HRV (TP519) status indicator
Intelligent controller, quick and easy to commission
Duct Pre-heater control (requires independent power supply)
BMS compatible via RS485 (subject to limitations, additional software requirements and specification with any order)
Cold Climate option available

Product Model	Product Code	Energy Rating
HRV10 Q Plus B Eco-aura controls ready	TP480B	Energy Rating A+
HRV10 Q Plus B Eco-aura controls Cold Climate ready	TP480BC	Energy Rating A+

Filters:

XP44022/099 - ISO Coarse 65% (G4) filter set fitted as standard.

Filters (Eco versions):

XP44023/099 - ISO Coarse 65% (G4) bypass filter set fitted as standard.
XP46223/099 - ISO Coarse 65% (G4)/ISO ePM1 55% (F7) filters available on request.

Standards

Conforms to requirements of UK statutory Building Regulations and Technical Standards for Ventilation and BRE 398.
SAP Appendix Q tested
Exceeds requirements of Building Regulations Approved Document L (England & Wales).
EU RoHS Directive compliant.
Conforms to requirements of EC council directives relating to Electromagnetic Compatibility and Electrical Safety:
2006/95/EC (LVD), 2004/108/EC (EMC), EN 60335-1:2002/A2:2006, EN 60335-2- 80:2003/A1:2004.
CE and UKCA Marked.

Specification

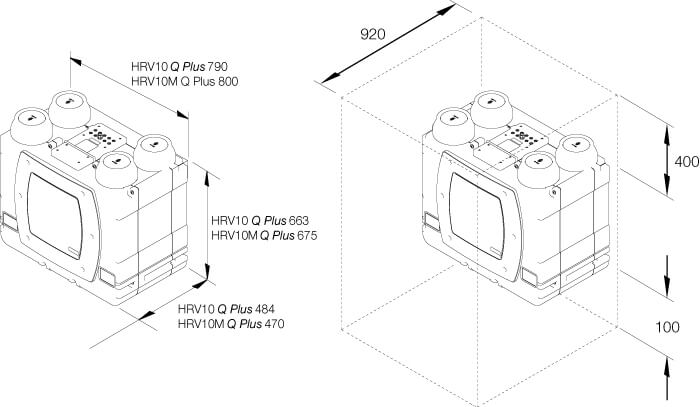

Dimensions: 790mm wide x 663mm high (excluding ports) x 484mm deep (495 mm with mounting bracket).

Weight: 17.5kg.
Finish: Black

Materials:
Housing: Expanded polypropylene (EPP) housing
Heat exchanger: Polystyrene
Internal insulation: Closed cell foamed Nitrile rubber, class ‘O’ fire rating
Standard filters: Grade ISO Coarse 65% (G4) pleated panel filters.

Guarantee period: 3 years (UK only).
Electrical: 230V ~ 50/60Hz, 3A fuse.
Installation: To be installed accordance with the relevant and applicable building regulations.
Maintenance: Service and filter replacement subject to local environment – see product manual.
Acoustics: Full acoustic data.

Performance

Exhaust terminal configuration*	Fan speed setting	Specific fan power (W/l/s)	Heat exchange efficiency (%)	Specific fan power (W/l/s)	Heat exchange efficiency (%)
Exhaust terminal configuration*	Fan speed setting	2009		2012
Kitchen + 1 additional wet room	100% variable	0.57	91%	0.55	90%
Kitchen + 2 additional wet room	100% variable	0.52	90%	0.57	90%
Kitchen + 3 additional wet room	100% variable	0.53	90%	0.65	89%
Kitchen + 4 additional wet room	100% variable	0.59	89%	0.76	88%
Kitchen + 5 additional wet room	100% variable	0.65	89%	0.9	87%
Kitchen + 6 additional wet room	100% variable	0.74	88%	1.09	86%
Kitchen + 7 additional wet room	100% variable	0.88	87%	1.27	85%

Figures taken from the BRE Test Results.
*Number of wet rooms is based on SAP Q test criteria and does not correlate directly with regulatory performance requirements.

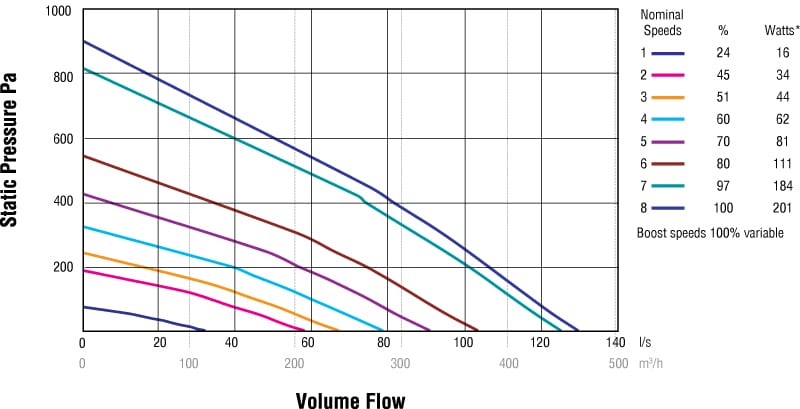

Performance Curve

*@FID (0 Pa)
All units offer 100% variable speed control

Acoustic Data

Product	% of Max flow	Airflow	dB(A) @ 3m Hemispherical			dB(A) @ 3m Spherical
Product	% of Max flow	Airflow	Induct Inlet	Induct Outlet	Casing Breakout	Casing Breakout
HRV10 Q Plus Eco	41%	44l/s @ 22Pa	27	38	27	24
	69%	75l/s @ 51Pa	36	48	37	34
	100%	108l/s @ 100Pa	43	57	51	48

For full frequency acoustic data at various speeds please see www.titon.co.uk. All acoustic data is third party tested at Sound Research Laboratories (SRL) Ltd.
