Air Valve (Supply)

For use with Titon‘s HRV Q Plus and CME Q Plus Ranges

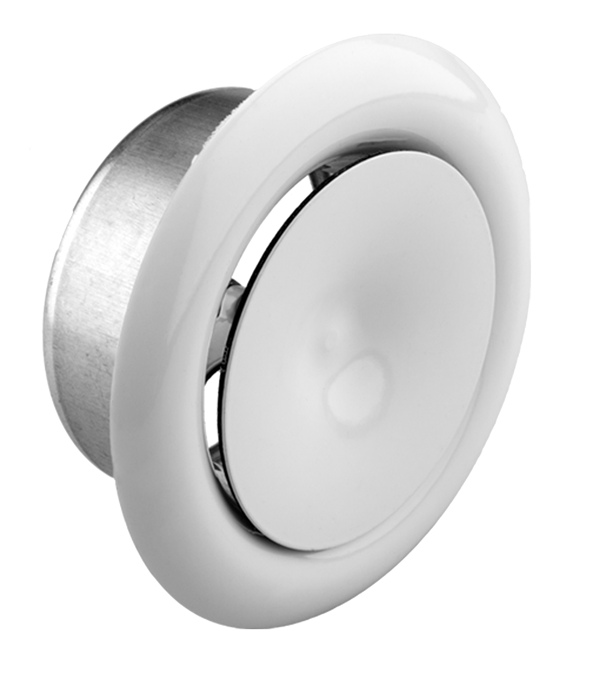

The round white metal ceiling air supply valve is manufactured from white epoxy powered coated steel. The valve has a male spigot to fit inside 100/125/150mm ducting.

The supply air valve is fully adjustable and has a locking nut to fix the position of the controlled disc upon commissioning.

The valve is supplied complete with a fixing body with pre-drilled holes for installation.

The valve engages/disengages to the fixing body by a quarter turn clockwise/anticlockwise.

8960229,8960232,8960235

Technical Information

Product Codes and Specific features

Product Specification

Ceiling Metal Vent Diffuser – Supply
Part Number	8960229	8960232	8960235
Size	100mm	125mm	150mm
Colour	RAL9016	RAL9016	RAL9016
Operating Temperature
Max	+60°C	+100°C	+60°C
Min	-15°C	-20°C	-15°C
Weight	270g	343g	270g
