auralite® CME

For use with Titon CME Q Plus Range

auralite® CME is a low voltage, hard wired status indicator sited remotely from the unit.

The auralite® CME is for use with Titon’s CME 2.1 and 3.1 Q Plus units and is ideal for making sure your Unit is working to its full capacity. With 6 display options, you will be able to monitor the functionality of the unit and its current status in operation.

TP517

Features & Benefits

Meets guidelines for occupant accessibility
Increase occupant awareness of system operation
Can be sited remotely from unit in an easy to access location
Discreet design
Fits a standard UK pattress box
Compatible with Titon CME units

Technical Information

Product Codes and Specific features

Description

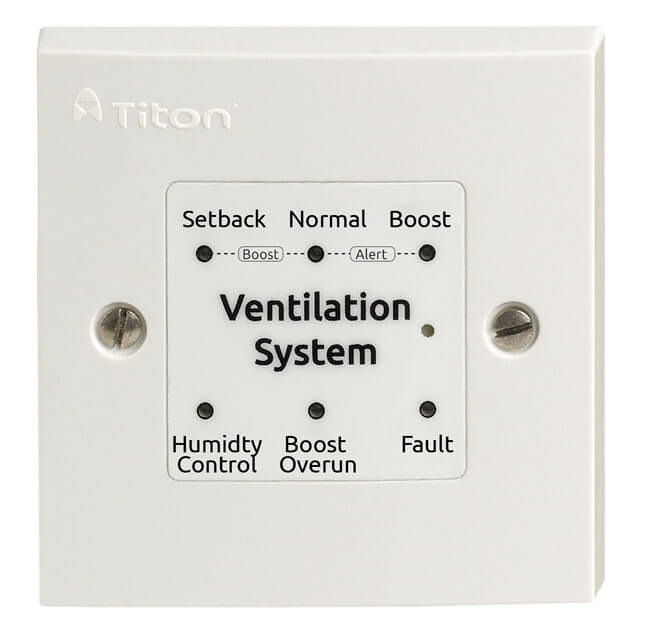

auralite® CME has six LEDs which display;

Setback - Unit is running at Setback Speed.
Normal - Unit is running at Normal Speed.
Boost - Unit is running at Boost Speed.
Humidity Control - Humidity sensor is controlling unit’s fan speed.
Boost Overrun - The Boost Overrun Timer is active.
Fault - Unit has a fault - Contact the installer.

Product Code

auralite® CME- TP517 (Compatible with TP***CH Only)

Specification

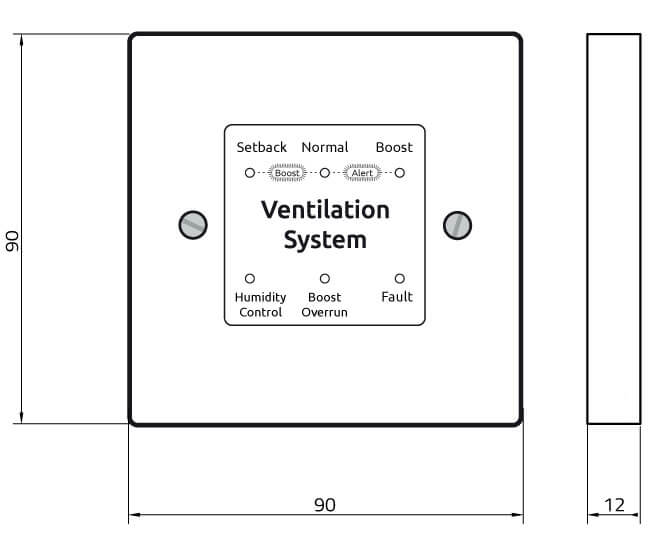

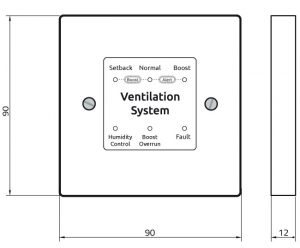

Dimensions: 90mm wide x 90mm high x 12mm deep
Weight: 50g
Finish: High gloss finish
Materials: Polycarbonate
Guarantee period: 1 year
Electrical: 12V DC
Installation: Suitable for mounting on a standard UK recessed pattress box. Supplied with screws.
