Vertical Canopy
Vertical Canopy
The aluminum Vertical Canopy is ideal for situations where vertical installation is required. This particularly helps comply with ADA regulations by keeping the internal operating ventilator low down on the window for easy reach. The canopy is ideal for both new construction and remodelling situations using any window material.
It is designed to be surface mounted and fits over a maximum ⅝” width slot in the window, providing a Free Air Area of 6.8in² per louvered grill. Multiple louvered grills can be joined together to make a longer canopy with greater air opening.
Available in standard lengths or in bar length for custom painting and/or self-assembly. There are many standard colors and it can also be painted to match the window color.

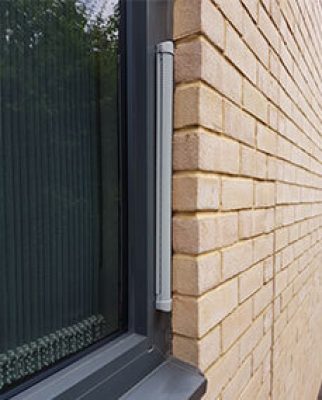

The color matched Vertical Canopy can be fitted to the full height of the window which will then blend into the window making it an attractive architectural feature.
TA241,TA240
Technical Information
Product Codes and Specific features
| Product | Product Code | (L) Length | (W) Width | (P) Projection | Available Air Opening (Free Area) | Maximum Slot Size |
| Vertical Canopy Range – slot widths up to 5⁄8″ | ||||||
| VC10 External Vertical Canopy | TA241 | 10 1⁄2″ | 1″ | 7⁄8″ | 3 5⁄8 in2 | 7 3⁄4″ x 5⁄8″ |
| VC17 External Vertical Canopy | TA240 | 17 3⁄4″ | 1″ | 7⁄8″ | 6 13⁄16 in2 | 14 5⁄8″ x 5⁄8″ |
Recommended Screws
No.6 Pan Head or equivalent (not supplied)
Performance
Full test details available on request)
Air Leakage – see ventilator data
Water Resistance – in excess of 15.5 psf / 750Pa.
Acoustic – see ventilator data
Colors available:
White and Black
End Caps – White, Black and Silver Gray
(Other colors are available – contact us for details)
| Product | Product Code | (L) Length | (W) Width | (P) Projection | Available Air Opening (Free Area) mm2 | Maximum Slot Size |
| Vertical Canopy Range – slot widths up to 16mm | ||||||
| VC10 External Vertical Canopy | TA241 | 450 | 25 | 22 | 2323 | 197 x 16 |
| VC17 External Vertical Canopy | TA240 | 255 | 25 | 22 | 4387 | 371 x 16 |
Recommended Screws
No.6 Pan Head or equivalent (not supplied)
Performance
Data sheets available on request
Air Leakage – see ventilator data
Water Resistance – in excess of 15.5 psf / 750Pa.
Acoustic – see ventilator data
Colors available:
White and black finish as standard. Other colors available on request.
End Caps – White and black
(Other colors are available – contact us for details)
