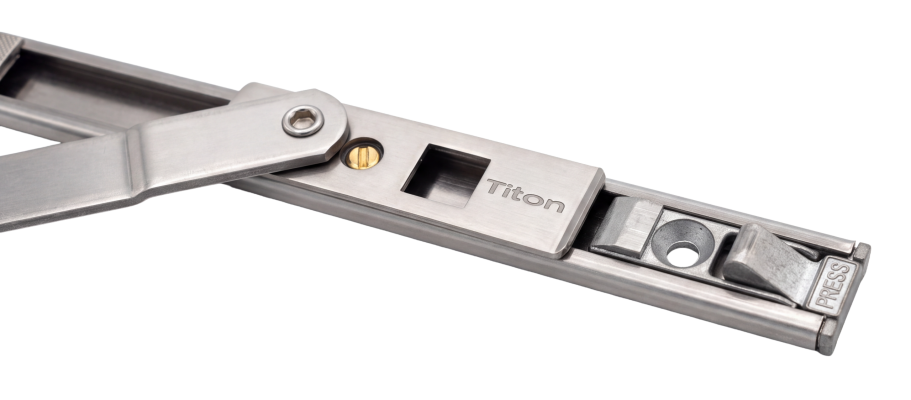

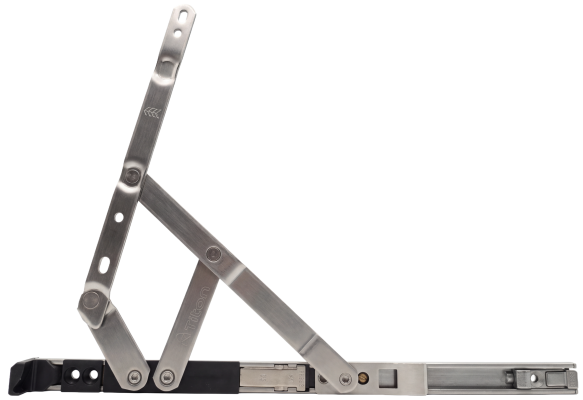

Venture Tri-Hinge
The Venture Tri-Hinge is a versatile 3-in-1 friction hinge combining restricted opening, full egress and easy-clean functionality in one product.
Part of Titon’s Venture range, it combines three key window-opening functions in a single friction hinge:
- Restricted opening
- Full egress
- Easy-clean operation.
Designed to give fabricators, installers and specifiers greater flexibility, it provides a practical solution where safety, emergency escape and window cleaning requirements need to be accommodated without changing the fundamental hinge solution.
Titon’s Tri-Hinge can also help reduce the number of separate hinge variants required for fabrication and stockholding.
The Venture Tri-Hinge is available in a range of configurations to suit different window sizes, handing and stack height requirements.
TN5136, TN5140, TN5137, TN5142, TN5137, TN5141, TN5139, TN5143
Features & Benefits
- 3-in-1 functionality – combines restricted opening, full egress and easy-clean operation in one hinge.
- One hinge, multiple requirements – simplifies specification and reduces the need for separate hinge solutions.
- Controlled ventilation and safety – restricted opening helps limit the window opening where required.
- Full egress capability – allows the sash to open fully when emergency escape access is required.
- Easy-clean functionality – enables the sash to move into a suitable position for easier cleaning and maintenance.
- Simplified stockholding – one versatile product can cover multiple application requirements.
- Flexible specification – suitable for projects where different window functions need to be accommodated within the same hardware range.
- Part of the Venture range – provides a consistent hardware solution alongside other Venture friction hinge options.
- Designed for practical installation – engineered with the needs of fabricators and installers in mind.
- Covered by Titon’s 10 Year Extended Mechanical Warranty.
Technical Information
Product Codes and Specific features
Details
Venture Tri-Hinge
| Lo-Stack | Hi-Stack | Hinge Size (") |
Hinge Size (mm) |
Max Sash Weight (kg) |
Max Sash Width (mm) |
Max Sash Height (mm) |
Initial Hinge Projection (mm) | Easy Clean Projection (mm) |
Opening Angle (+/-2.5°) |
| Left Handing | |||||||||
| TN5136 | TN5140 | 12 | 321 | 18 | 600 | 1400 | 42 | 121 | 80 |
| TN5138 | TN5142 | 16 | 443 | 21 | 650 | 1600 | 48 | 240 | 85 |
| Right Handing | |||||||||
| TN5137 | TN5141 | 12 | 321 | 18 | 600 | 1400 | 42 | 121 | 80 |
| TN5139 | TN5143 | 16 | 443 | 21 | 650 | 1600 | 48 | 240 | 85 |
Manufactured from
Ferritic stainless steel
Performance
TBC
