Vent-Trex (Obsolete)

Over-head extract fan / trickle ventilator

IMPORTANT NOTICE

This product has now been discontinued by Titon Hardware. Unfortunately no spares or after sales support is available. New units and enquiries, please go to Vent Systems Limited for new orders.

Vent-Trex is a unique combined overhead extract fan and trickle ventilator for kitchens and bathrooms that fits within the aperture on top of the window frame.

Vent-Trex is ideal for refurbishment situations where wall penetration is undesirable, as it does not damage the fabric of the building or where external aesthetics need to be preserved.

It provides a trickle ventilation performance Equivalent Area (EA) of 2500mm² minimum and extract ventilation rates to suit either kitchens or bathrooms.

Features & Benefits

Unique combined extract fan/trickle ventilator
Suitable for all window types
Integral with window, ideal for refurbishment situations
Avoids damage or penetration of building fabric
Easy to install
Saves wall space
Low installation costs compared to traditional extract ventilators
Bathroom version – single speed (15 l/s)
Kitchen version – two speed (60 l/s and 30 l/s)
2500mm² EA minimum
Low energy usage
Easy to clean
Easy to maintain
IP24 rating
Humidistat option available (integral or remote)
Available with remote PSU (SELV) option for bathrooms
Continuous power
Variable speed version
Suitable for use in conservation areas
2-year guarantee

Technical Information

Product Codes and Specific features

Options Available

Standard Version - more information
Continuous Power Version - more information
General Information - more information
Continuous Running - more information

Finishes

White finish as standard to RAL 9010. Can be supplied in different colours. External canopy and internal fan can be coloured independently. Details available on request.

Measuring

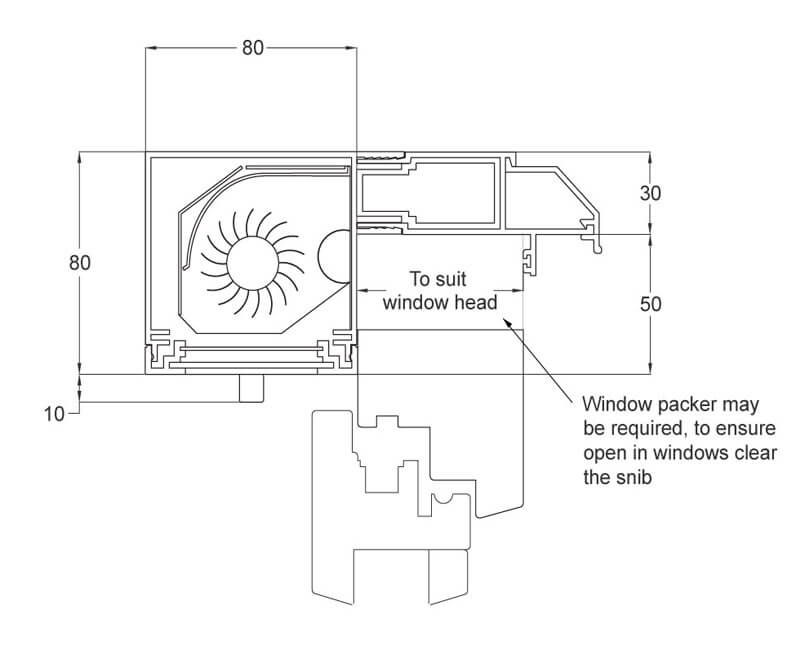

VENT-TREX can be supplied for a 'parallel' (typically English) or a 'check' (typically Scottish) reveal, please refer to diagrams below.
These are intended only as general illustrations. Specific installation details may vary & should always be checked on site prior to order.
Allow for uneven reveals & check dimensions at more than one point.
Allow for power cable if required to exit from end of unit.
Round A & B measurements down to nearest 5mm increment i.e. 973mm will be 970mm after tolerance).
