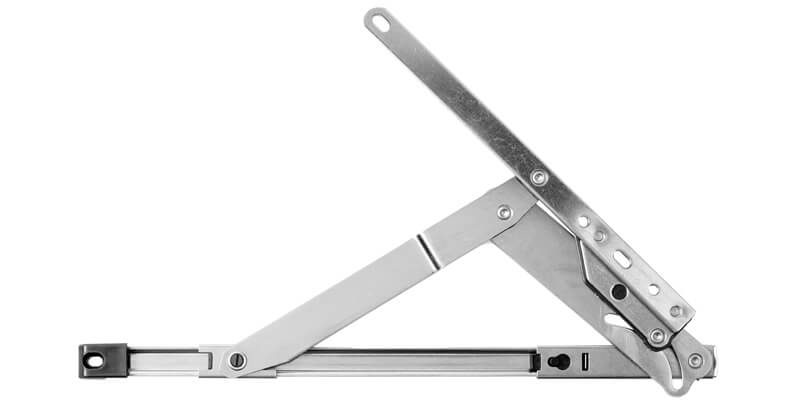

Trojan Mega Egress
Friction hinge
For casement window systems, the Mega Egress Friction Hinge is suitable for all side hung applications.
Due to the designs superior integral strength, one hinge size covers all frame widths up to 900mm at a maximum load of 40kg (345mm version) or 33kg (227mm version).
0115-2008-E-135,0115-2008-E-165,0115-2013-E-135,0115-2013-E-165
Features & Benefits
- 227mm and 345mm suits all side hung applications up to 600mm and 900mm sash widths respectively
- True 90º opening for egress compliance

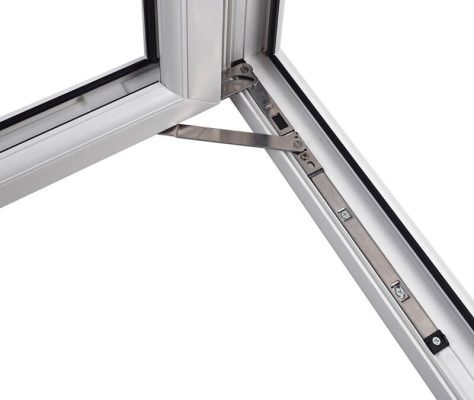

- For use on casement window systems
- 13.5mm and 16.5mm stack heights
- Maximum 40kg vent weight (or 35kg for openings over 800mm wide)
- Reduced possibility of finger entrapment
- Stainless Steel – Grade 430
- Tested to PAS 24 security test as part of a window system
Technical Information
Product Codes and Specific features
Details
| Product | Product Code |
| Small 220mm Mega Egress Hinge 13.5 Stack Height | 0115-2008-E-135 |
| Small 220mm Mega Egress Hinge 16.5 Stack Height | 0115-2008-E-165 |
| Mega Egress Hinge 13.5 Stack Height | 0115-2013-E-135 |
| Mega Egress Hinge 16.5 Stack Height | 0115-2013-E-165 |
Manufactured from
Stainless Steel parts – Grade 430
Plastics parts – GF Nylon
Recommended screws
Stainless steel No.10 or equivalent
Performance
Tested to BS EN 1670 and has exceeded Grade 5 classification for ultimate corrosion resistance
