Trimvent® Select Xtra S13

Trimvent® Select Xtra S13 is a surface mounted plastic slot ventilator that fits over a 13mm slot in a window and provides an Equivalent Area (EA) of 2000mm2, 4400mm2 or 5000mm2. It can be fitted with an XC13 canopy or GS22 grille.

The XS13 is a direct replacement for the S13 range, using the same slot measurements but offering a much greater airflow and Equivalent Area.

The XS13 is ideal for both new build and refurbishment situations using any window material, and is available in a variety of colours.

The Xtra design improves the Trimvent® Select range to offer increased ventilation. It gives optimum airflow (and therefore EA) utilising existing slot sizes and vent lengths. It has been specifically developed to meet the recent 2022 revisions to Part F of the Building Regulations for Ventilation (England & Wales), is optimised for use with the Scottish Technical Standards and to improve performance for requirements throughout the UK and Europe.

Trimvent® Select ventilators have been specified and fitted on tens of millions of windows throughout the UK and mainland Europe over the last 20 years.

Product	Product Code	(L) Length	(W) Width	(P) Projection Closed-Open	EA (mm²)	Free Area (mm²)	Slot Detail / Free Area of Slot (mm²)
S13 2000EA Vent Screw Fix*	TS1131750	265	18.5	20 - 26	2000	2212
XC13 270 Canopy Screw Fix	TS2132040	270	18	32.5		3003
S13 2000EA Vent Clip Fix*	TS1132051	265	18.5	20 - 26	2000	2212
XC13 270 Canopy Clip Fix	TS2132041	270	18	32.5		3003
XS13 4400EA vent screw fix	TS1134470	411	18.5 - 30	20 - 27	4400	4285
XC13 412 canopy screw fix	TS2134040	411	18	32.5	4400	5027
XS13 & XC13 4400EA screw fix pack	TS4134470
XS13 4000EA vent clip fix	TS1134071	411	18.5 - 30	20 - 27	4000	4149
XC13 412 canopy clip fix	TS2134041	411	18	32.5	4000	4809
XS13 & XC13 4000EA clip fix pack	TS4134071
XS13 5000EA vent screw fix	TS1135070	497	18.5 - 30	20 - 27	5000	5230
XC13 497 canopy screw fix	TS2135040	497	18	32.5	5000	6258
XS13 & XC13 5000EA screw fix pack	TS4135070
XS13 5000EA vent clip fix	TS1135071	497	18.5 - 30	20 - 27	5000	5096
XC13 497 canopy clip fix	TS2135041	497	18	32.5	5000	6055
XS13 & XC13 5000EA clip fix pack	TS4135071
GS22 241 pair grilles*	TS3224050	241 x 2	27	1.5	5000	10022

EA figures above and marked on vents are achieved when fitted to manufacturer’s recommendations. Tested in accordance with BS:EN 13141-1 (2019).
*Fully open position of vent differs from XS13.
**Typically used for overhead sections.
This product does feature some protrusion into the slot. Using a product without locators could affect the stability of the product in certain extreme conditions.

Vent – PBTP (UV Stable) & POM, Canopy – PVCu
Grille - PP

3.5mm (No.6) Pan Head or equivalent

Tested in accordance with BS EN 13141-1:2019 (airflow, air leakage and weather tightness)
Acoustic performance tested in accordance with BS EN ISO20140-10:1992, BS EN ISO140-10:1991 and single figures to BS EN ISO717-1:1991

(Full test details available on request)
Equivalent Area – see above
Free Area – see above
Air Leakage (m³/hr @ 50Pa) – screw fix – 2.42, clip fix –
7.29. 5000 version screw fix – 4.57, clip fix – 5.69
Water Resistance (Pa) – 4400EA version – 600Pa
5000EA version – 450Pa
Acoustic Dn,e,w (+/-) – 4400EA version – vent open 32 (0;1),
vent closed 41 (0;-1). 5000EA version – vent open 32 (-1;0), vent closed 35 (0;0)

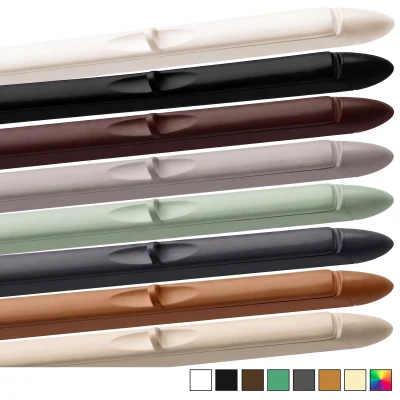

Suffix product code with:
-392 (white), -315 (brown), -496 (bright white), -662 (toffee)
Other colour options available to order and not held in stock. Please contact sales for details.
