Trimvent® Select Xtra R16
Trimvent Select Xtra R16 is a fully recessed plastic slot ventilator that fits over a 16mm slot in a window and provides an Equivalent Area (EA) of 4600mm² when fitted with the XHD16 grille or XC16 canopy. The XR16 is ideal for both new build or refurbished situations using timber windows and is available in a variety of colours.
The Xtra design improves the Trimvent Select range to offer increased ventilation. It gives optimum airflow (and therefore Equivalent Area) utilising existing Trimvent Select slot sizes and vent lengths, making them 60% more efficient than previous models.
It has been specifically developed for recent revisions to Part F of the Building Regulations for Ventilation (England & Wales), and to improve performance for requirements throughout the UK and Europe.
Trimvent Select ventilators have been specified and fitted on millions of windows throughout the UK and mainland Europe over the last twenty years.
TS1164630,TS2164040,TS1164630,TS3164030
Features & Benefits
- Uprated design to improve performance and Regulations compliance
- Unique occupant controllable tilting T-bar
- No projection (when closed) for ease of window stacking
- Recesses over 16mm slot
- Based on successful Trimvent® principle
- Sculpted finger recess
- Patented and registered design
- Supplied with paint protection adhesive cover
- When specified correctly complies with Building Regulations
Technical Information
Product Codes and Specific features
Product description
Trimvent Select Xtra R16 is a fully recessed plastic slot ventilator that fits over a 16mm slot in a window and provides an Equivalent Area (EA) of 4600mm² when fitted with the XHD16 grille or XC16 canopy. The XR16 is ideal for both new build or refurbished situations using timber windows and is available in a variety of colours.
The Xtra design improves the Trimvent Select range to offer increased ventilation. It gives optimum airflow (and therefore Equivalent Area) utilising existing Trimvent Select slot sizes and vent lengths, making them 60% more efficient than previous models.
It has been specifically developed for recent revisions to Part F of the Building Regulations for Ventilation (England & Wales), and to improve performance for requirements throughout the UK and Europe.
Trimvent Select ventilators have been specified and fitted on millions of windows throughout the UK and mainland Europe over the last twenty years.
Details & Measurements
| Product | Product Code | (L) Length |
(W) Width |
(P) Projection Closed-Open | EA (mm²) |
Free Area (mm²) |
Slot Detail / Free Area of Slot (mm²) |
| XR16 4600EA vent | TS1164630 | 351 | 21 - 32 | 0 - 18.5 | 4600 | 4530 |  |
| XC16 364 canopy | TS2164040 | 364 | 22 | 32.5 | 4600 | 4990 | |
| XR16 4600EA vent | TS1164630 | 351 | 21 - 32 | 0 - 18.5 | 4600 | 4530 |  |
| XHD16 grille ** | TS3164030 | 358 | 26 | 13.5 | 4600 | 5345 |
* Slot detail should also include a 352 x 22 x 16 recess for the ventilator.
** Special preparation required for XHD16 Grille. See Titon Fixing Instructions for full details.
EA figures above and marked on vents are achieved when fitted to manufacturer’s recommendations. Tested in accordance with BS:EN 13141-1 (2004).
Acoustic Ratings
| Product | Product Code | Open - Dn,e,w (C;Ctr) | Closed - Dn,e,w (C;Ctr) | EA (mm²) |
| XR16 Vent | TS1164630 | 31 (0;1) | 40 (-1;-1) | 4600 |
| XR16 364 Canopy | TS2164040 |
Manufactured from
Vent – PBTP (UV Stable) & POM, Canopy – PVCu
Grille – PP
Recommended screws
3.5mm (No.6) Pan Head or equivalent
Standards
Tested in accordance with BS EN 13141-1:2004 (airflow, air leakage and weather tightness)
Acoustic performance tested in accordance with BS EN ISO20140-10:1992, BS EN ISO140-10:1991 and single figures to BS EN ISO717-1:1991
Performance
(Full test details available on request)
Equivalent Area – See above
Free Area – See above
Air Leakage (m³/hr @ 50Pa) – 6.04 (with XHD16), 2.43 (with XC16)
Water Resistance (Pa) – Vent & Canopy 600, Vent & Grille 300
Acoustic Dn,e,w (+/-) – vent open 31 (0;1), vent closed 40 (-1;-1)

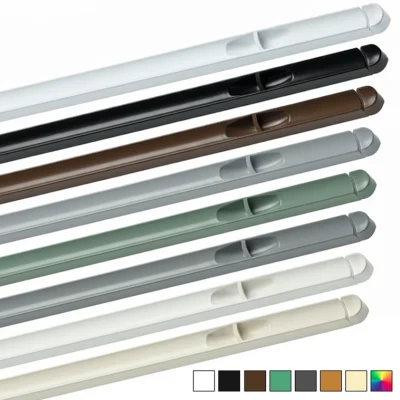

Finishes
Suffix product code with: -392 (white), -315 (brown)
Other colour options available to order, not held as stock items. Please contact sales for details.
