Trimvent® Profile Sleeve

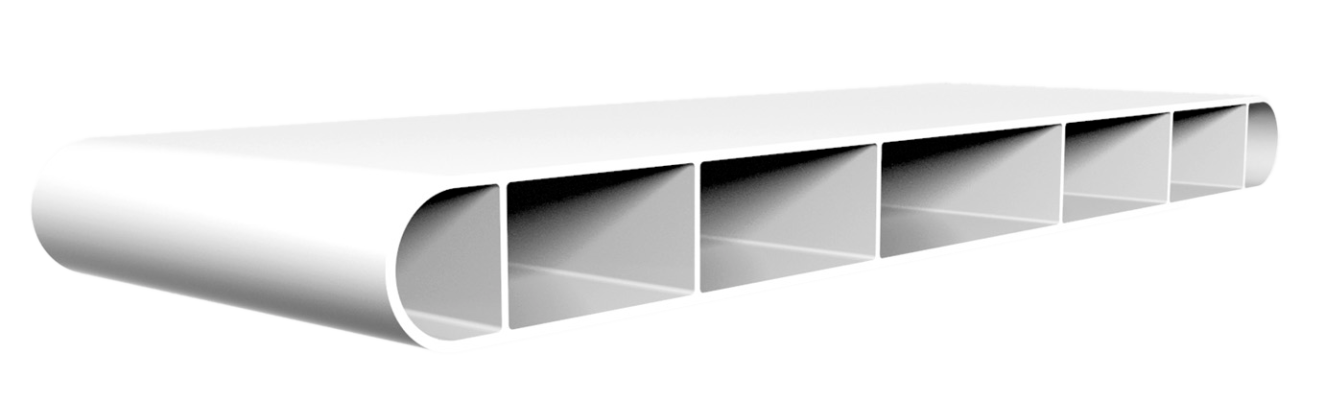

The Trimvent Sleeve is designed to provide an additional layer of protection against unwanted moisture entering hollow profile sections.
These profiles are commonly found in PVC, aluminium and steel constructions where internal cavities can otherwise allow water ingress if left unprotected.
Manufactured to suit a wide range of applications, the sleeve is available in several sizes and can be easily cut to the required length to ensure a precise fit. This flexibility makes it suitable for installation across different profile types and dimensions.

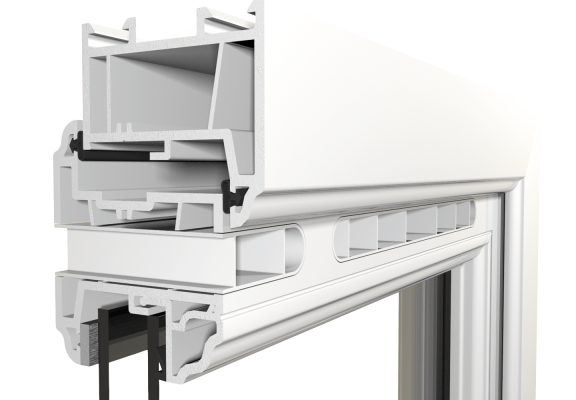

The Trimvent Sleeve is simple and quick to install, requiring minimal effort during fitting. Its design ensures that the air opening and airflow performance of the vent are not restricted. In fact, when installed in most hollow profile sections, the sleeve can help guide and improve the passage of air through the profile, supporting more efficient ventilation while maintaining effective moisture protection.
TA4558/014,TA4561/014,TA4569/014,TA4575/014,TA4585/014,TA4761/014,TA4775/014,TS5134069/014,X5703033/014
Features & Benefits
- Designed for use with Trimvent Select and Trimvent 4000 ventilators
- Simple push-fit installation for quick and easy fitting
- Single-piece extruded design for durability and consistent performance
- Supplied ready to install, with no assembly required
- Helps reduce the risk of unwanted air and moisture entering hollow profile chambers
- Available in a range of sizes to suit different PVC, aluminium, and steel profile sections
- Two sleeves required per Trimvent 4000 ventilator
- Does not reduce the ventilator or canopy air opening performance, maintaining designed airflow levels
- Not compatible with Trimvent Select clip-fix ventilators.
- Covered by Titon’s 10 Year Extended Mechanical Warranty.
Technical Information
Product Codes and Specific features
Details & Measurements
TBC
Acoustic Ratings
TBC
Standards
- Tested in accordance with BS EN 13141-1:2004 (airflow, air leakage and weather tightness)
- Acoustic performance tested in accordance with BS EN ISO20140-10:1992, BS EN ISO140-10:1991 and single figures to BS EN ISO717-1:1991
Performance
TBC
Finishes
TBC
