Trimvent® 90 Hi Lift
Trimvent 90 Hi Lift is a semi-recessed aluminium slot ventilator that fits over a 16mm slot in a window and provides an Equivalent Area (EA) of up to 8600mm² when fitted with the Hi Flow canopy. The TV90 Hi Lift is ideal for both new build or refurbished situations using any window material, and is also available in a variety of colours.
The Hi Lift design improves the Trimvent range to offer increased ventilation. It gives optimum airflow (and therefore EA) utilising existing Trimvent slot sizes and vent lengths, making them 60% more efficient than previous models.
It has been specifically developed for recent revisions to Part F of the Building Regulations for Ventilation (England & Wales), is optimised for use with the Scottish Technical Standards and to improve performance for requirements throughout the UK and Europe.
The Trimvent 90 range of trickle ventilators has been specified and fitted on millions of windows throughout the UK and mainland Europe over the last 35 years.
TA631,TA6054,TA634,TA6057,TA635,TA6058,TA633,TA6056
Features & Benefits
- Uprated design to improve performance and Regulations compliance
- T-bar deflects air up and down
- Compression closing action
- For use on 16mm slot
- Based on successful Trimvent® principle
- Unique linkages ensure constant friction and smooth action
- Canopy features integral screw covers
- Special colours available on request
- Felted gasket for increased performance
- When specified correctly complies with Building Regulations
Technical Information
Product Codes and Specific features
Product description
Trimvent 90 Hi Lift is a semi-recessed aluminium slot ventilator that fits over a 16mm slot in a window and provides an Equivalent Area (EA) of up to 8600mm² when fitted with the Hi Flow canopy. The TV90 Hi Lift is ideal for both new build or refurbished situations using any window material, and is also available in a variety of colours.
The Hi Lift design improves the Trimvent range to offer increased ventilation. It gives optimum airflow (and therefore EA) utilising existing Trimvent slot sizes and vent lengths, making them 60% more efficient than previous models.
It has been specifically developed for recent revisions to Part F of the Building Regulations for Ventilation (England & Wales), is optimised for use with the Scottish Technical Standards and to improve performance for requirements throughout the UK and Europe.
The Trimvent 90 range of trickle ventilators has been specified and fitted on millions of windows throughout the UK and mainland Europe over the last 35 years.
Details & Measurements
| Product | Product Code | (L) Length | (W) Width | (P) Projection Closed-Open | EA (mm²) | Free Area (mm²) | Slot Detail / Free Area of Slot (mm²) |
| TV90 HL 2500EA 300 vent | TA634 | 300 | 22 | 17 - 27 | 2500 | 2649 |  |
| HF 303 canopy | TA6057 | 303 | 24 | 36.5 | 4458 | ||
| TV90 HL 4300EA 425 vent | TA631 | 425 | 22 | 17 - 27 | 4300 | 4184 |  |
| HF 441 canopy | TA6054 | 441 | 24 | 36.5 | 6763 | ||
| TV90 HL 5000EA 525 vent | TA635 | 525 | 22 | 17 - 27 | 5000 | 5308 |  |
| HF 529 canopy | TA6058 | 529 | 24 | 36.5 | 8233 | ||
| TV90 HL 8600EA 835 vent | TA633 | 835 | 22 | 17 - 27 | 8600 | 8368 |  |
| HF 844 canopy | TA6056 | 844 | 24 | 36.5 | 13493 |
EA figures above and marked on vents are achieved when fitted to manufacturer’s recommendations.
Tested in accordance with BS:EN 13141-1 (2004).
This product does feature some protrusion into the slot. If the recommended slot size has been cut then the protrusion will not affect fitting or claimed performance.
Acoustic Ratings
| Product | Product Code | Open - Dn,e,w (C;Ctr) | Closed - Dn,e,w (C;Ctr) | EA (mm²) |
| TV425HL Vent | TA631 | 31 (0;1) | 42 (-1;-2) | 4300 |
| HF441 Canopy | TA6054 |
Manufactured from
Aluminium 6063 HIT T6, component parts PVCu, POM & PP (UV Stable)
Recommended screws
3.5mm (No.6) Round Head or equivalent
Standards
- Tested in accordance with BS EN 13141-1:2004 (airflow, air leakage and weather tightness)
- Acoustic performance tested in accordance with BS EN ISO20140-10:1992, BS EN ISO140-10:1991 and single figures to BS EN ISO717-1:1991
Performance
(Full test details available on request)
- Equivalent Area – See above
- Free Area – See above
- Air Leakage (m³/hr @ 50Pa) – 1.09 (4300EA version)
- Water Resistance (Pa) – 600
- Acoustic Dn,e,w (+/-) – vent open 31 (0;1), vent closed 42 (-1;-2)

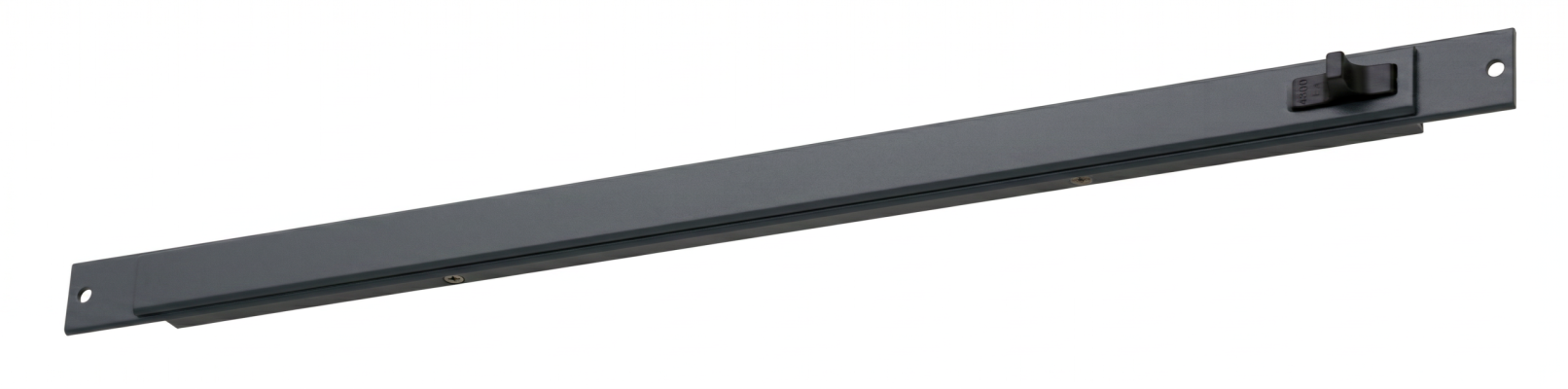

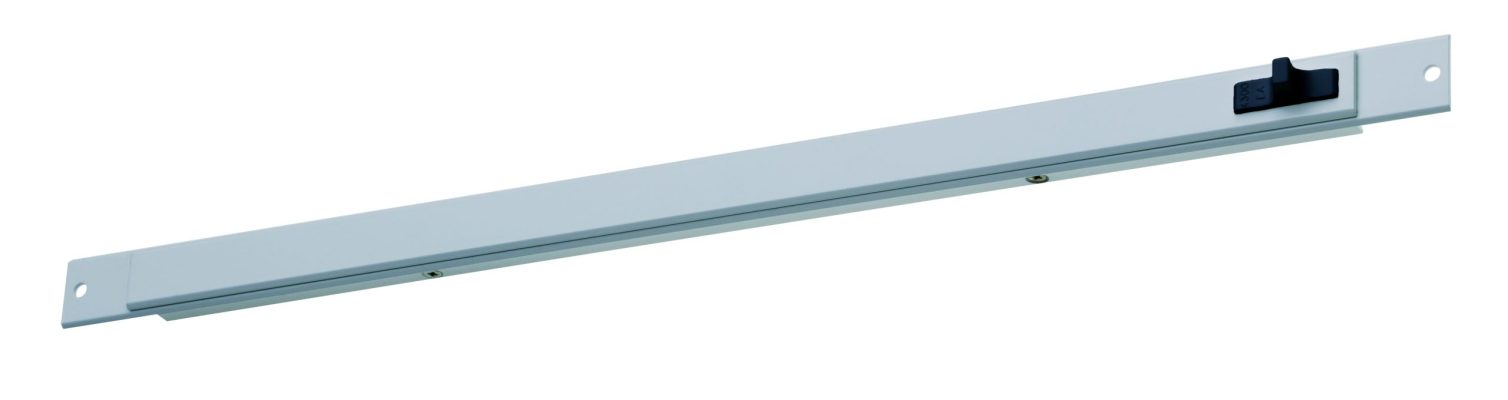

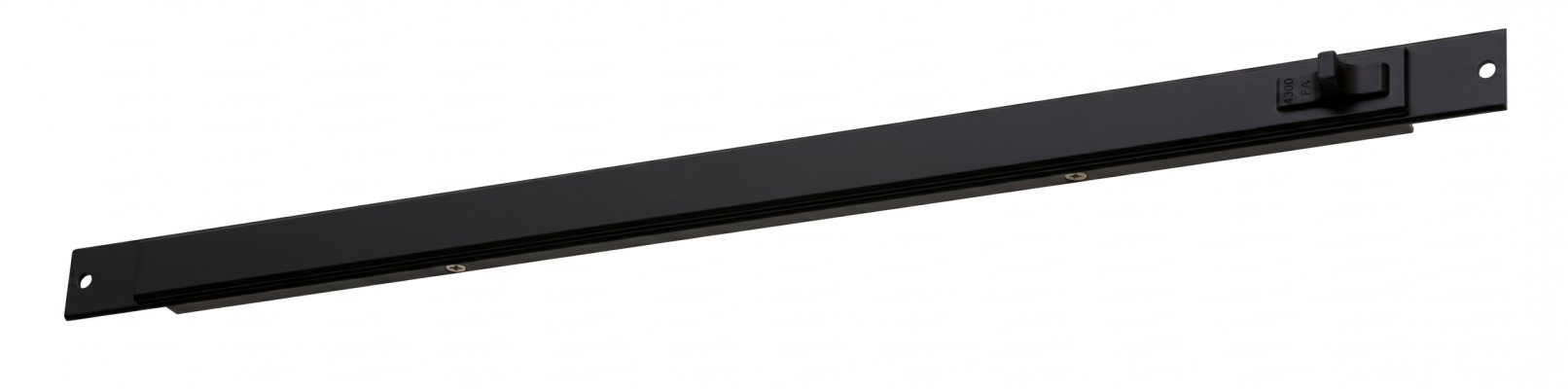

Finishes
Suffix product code with:
-020 (white),
-001 (SAA) (Canopy -026),
-023 (brown)
- Other colour options available
Please contact sales for details.
