Trimvent 4000
Trimvent 4000
Trimvent 4000 is an aluminum slot ventilators that fits over a ½” slot in the window and provides a much healthier indoor air environment in the home and give the home occupants greater comfort and control in doing so.
Trimvent vents all give optimum airflow. Specifically developed to improve indoor air quality requirements throughout North America and the Rest of the World.
TA4042,TA4006,TA4041,TA4205,TA4044,TA4008
Technical Information
Product Codes and Specific features
Imperial Details
| Product | Product Code | (L) Length | (W) Width | (P) Projection | Available Air Opening (Free Area) | Slot Size |
| TV4000 Range - 1⁄2" slot width | ||||||

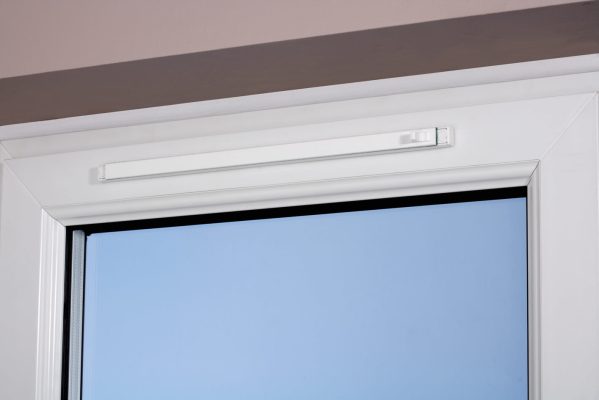

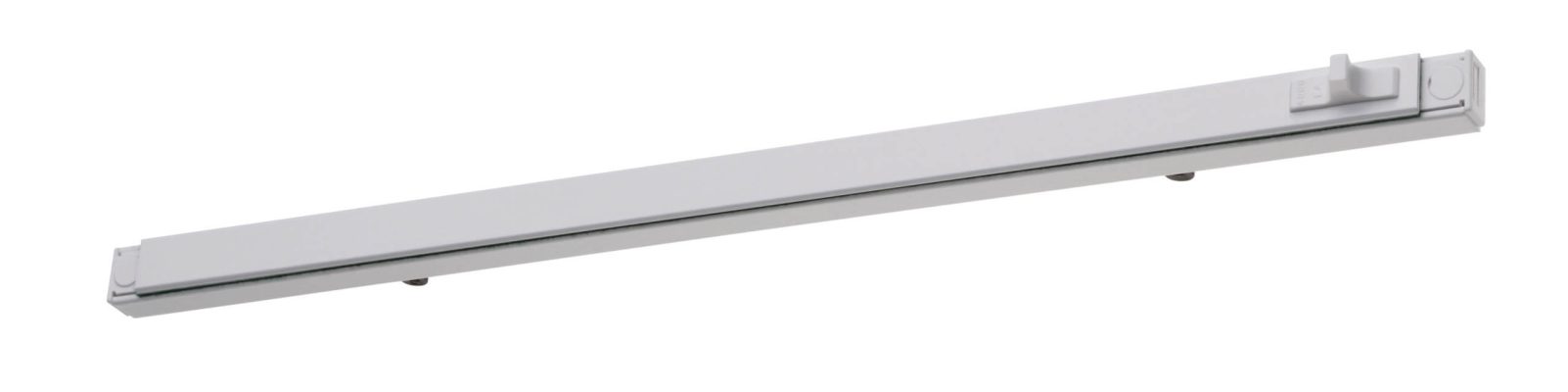

| TV2000 Internal Trickle Ventilator | TA4042 | 10" | 5⁄8" | 1 1⁄8" - 1 1⁄2" | 3 7⁄16 in2 | 8 3⁄4" x 1⁄2" |

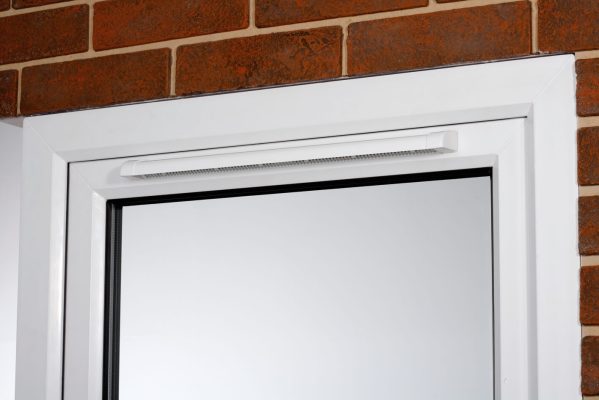

| TV2000 External Canopy | TA4006 | 10" | 1 1⁄8" | 7⁄8" | 3 7⁄16 in2 | 8 3⁄4" x 1⁄2" |
| TV4000 Internal Trickle Ventilator | TA4041 | 15 3⁄4" | 5⁄8" | 1 1⁄8" - 1 1⁄2" | 6 3⁄16 in2 | 14" x 1⁄2" |
| TV4000 External Canopy | TA4205 | 15 3⁄4" | 1 1⁄8" | 7⁄8" | 6 3⁄16 in2 | 14" x 1⁄2" |
| TV6000 Internal Trickle Ventilator | TA4044 | 22 5⁄8" | 5⁄8" | 1 1⁄8" - 1 1⁄2" | 9 5⁄16 in2 | 21 3⁄8" x 1⁄2" |
| TV6000 External Canopy | TA4008 | 22 5⁄8" | 1 1⁄8" | 7⁄8" | 9 5⁄16 in2 | 21 3⁄8" x 1⁄2" |
This product does feature some protrusion into the slot. If the recommended slot size has been cut then the protrusion will not affect fitting or claimed performance.
Manufactured From
Aluminum 6063 HIT T6, component parts PVCu, POM & PP (UV Stable)
Recommended Screws
(No.6) Pan or Round Head or equivalent.
Performance
- Free Area - see above.
- Water Resistance – in excess of 12.5 psf / 600Pa.
- Acoustic STC – open 32dB – closed 43dB.
Available finishes
White and black finish as standard. Other colors available on request.
Metric Details
| Product | Product Code | (L) Length | (W) Width | (P) Projection | Available Air Opening (Free Area) mm2 | Slot Size |
| TV4000 Range - 13mm slot width | ||||||
| TV2000 Internal Trickle Ventilator | TA4042 | 255 | 17 | 28 – 38 | 2200 | 223 x 13 |
| TV2000 External Canopy | TA4006 | 254 | 29 | 22 | 2200 | 223 x 13 |
| TV4000 Internal Trickle Ventilator | TA4041 | 400 | 17 | 28 – 38 | 4000 | 357 x 13 |
| TV4000 External Canopy | TA4205 | 400 | 29 | 22 | 4000 | 357 x 13 |
| TV6000 Internal Trickle Ventilator | TA4044 | 575 | 17 | 28 – 38 | 6000 | 543 x 13 |
| TV6000 External Canopy | TA4008 | 575 | 29 | 22 | 6000 | 543 x 13 |
Manufactured From
Aluminum 6063 HIT T6, component parts PVCu, POM & PP (UV Stable).
Recommended Screws
(No.6) Pan or Round Head or equivalent.
Performance
- Free Area - see above.
- Water Resistance – in excess of 12.5 psf / 600Pa.
- Acoustic STC – open 32dB – closed 43dB.
Available finishes
White and black finish as standard. Other colors available on request.
