Stainless Steel Heavy Duty Hinge Guard
Hinge guards are an essential safety feature in modern building design, offering a simple cost-effective solution to prevent accidents and extend the life of door mechanisms.
Their ease of installation and maintenance, together with their protective benefits, make them a priority in situations where safety is a priority.
Tenure hinge guards work to enhance security on PVCu windows and protect all types of friction stays and hinges against forced attack without compromising the opening and closing functionality of the hinge.
Sold in pairs.
TN5001,TN5002,TN5003,TN5024,TN5025,TN5026,TN5004,TN5005,TN5006,TN5007,TN5008,TN5009,TN5018,TN5019,TN5020,TN5021,TN5022,TN5023,TY212,TY216,TN5030,TN5034,TN5035,TN5134,TN5135
Features & Benefits
- Retrofit security hinge protection device
- Heavy duty hinge
- Easy to fit with no routing required
- Two variants available for high and low stack heights
- Made from 304 Austenitic Stainless Steel
- Suitable for a wide range of PVC-U window systems
- Exceeds PAS 24: 2016 standards
- Corrosion tested to BS EN 1670 Grade 5
- Independently tested in Titon’s AREA24 lab
- Cost-effective safety solution
- Covered by Titon’s 10 Year Extended Mechanical Warranty.
Technical Information
Product Codes and Specific features
Details

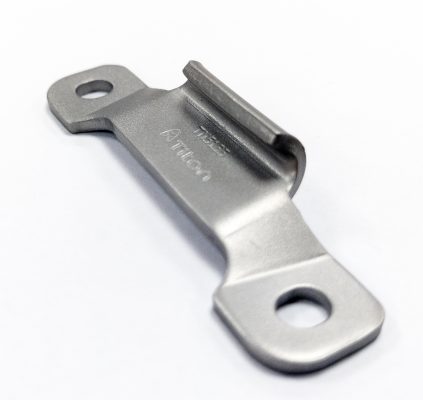

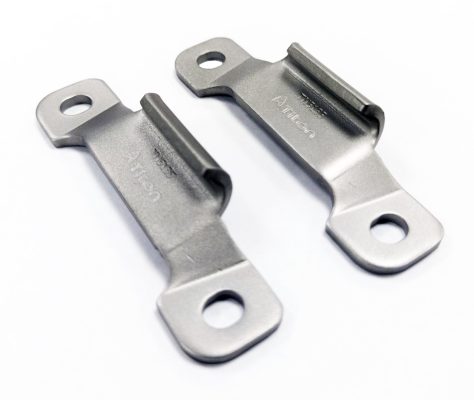

Tenure Stainless Steel Hinge Guard (4 of required for window)
| Product Code | Stack Height (mm) | Box Quantity |

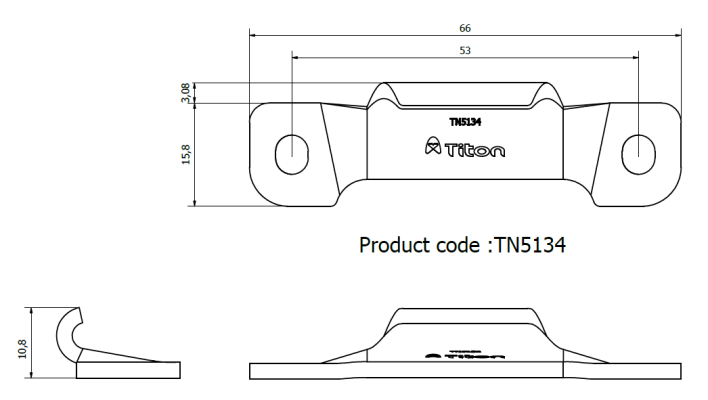

| TN5134 (1 Hinge Guard) | Lo-Stack | 100 |

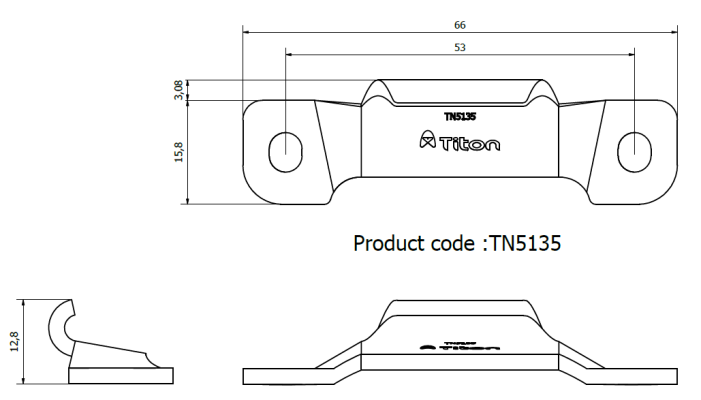

| TN5135 (1 Hinge Guard) | Hi-Stack | 100 |
Manufactured from
304 Austenitic Stainless Steel
Performance
240 hours Salt Spray tested to BS EN 1670: 2007: Grade 5
