Supervent

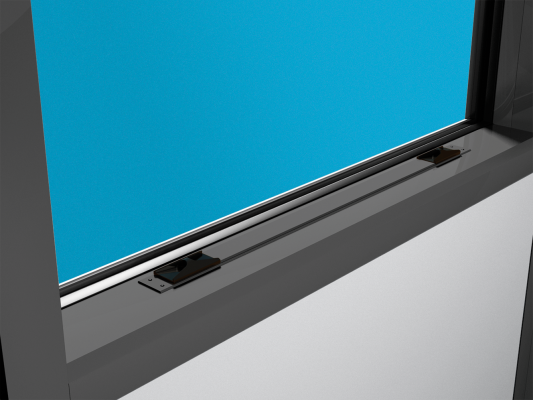

Designed specifically for aluminium window and curtain walling systems, this integrated trickle ventilator can be discreetly installed within sill sections or intermediate horizontals, allowing controlled natural airflow without compromising the building envelope.
Fresh external air is gently introduced into the room while warm, moisture-laden internal air is allowed to escape, delivering continuous background ventilation without the need for power, mechanical systems or opening a window.
The vent remains completely hidden from the outside, preserving the clean appearance of the building façade and ensuring it blends seamlessly with curtain walling, glazing systems and external cladding.
Engineered for flexibility, the system can be custom sized and colour-matched to suit a wide range of architectural designs, ensuring a fully integrated and visually unobtrusive installation.
Features & Benefits
- User-controlled T-Bar adjustment to set the ideal airflow and comfort level
- Designed for 32mm ventilation slot applications
- Can replace small opening windows in curtain wall systems while maintaining ventilation
- Invisible from the exterior, preserving façade aesthetics
- Available in standard colours or custom colour matched to window finishes
- Precision adjustable hinges provide constant friction and smooth, reliable operation
- Patented and registered design.
- Covered by Titon’s 10 Year Extended Mechanical Warranty.
Technical Information
Product Codes and Specific features
Product Codes
| Product | Product Code | Length (mm) | Width (mm) | Slot Detail |
| SV522 Supervent | TA833 | 522 | 38 | 454 x 32 |
| SV697 Supervent | TA814 | 697 | 38 | 628.6 x 32 |
| SV762 Supervent | TA830 | 762 | 38 | 693.7 x 32 |
| SV970 Supervent | TA802 | 970 | 38 | 901.7 x 32 |
| SV1100 Supervent | TA803 | 1100 | 38 | 1031.8 x 32 |
Finishes
Standard Colours:
White, Silver and Black
Other RAL colours available - please contact sales for details.
