Sonair 3

Sonair 3 – For use fitted through walls

Sonair 3 provides mechanical input ventilation when switched on, when switched off provides background trickle ventilation which includes a controllable shutter.

It is designed with sound attenuating features to reduce noise transferring from outside to inside the home

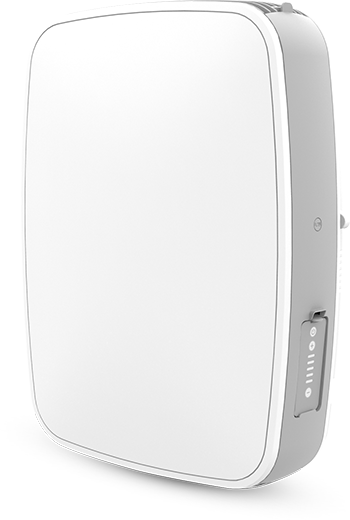

Sonair 3 is a wall mounted input fan featuring a detachable remote control with an LED speed indicator.

352004 – Sonair 3 including G4/ISO Coarse 60%,535083 – Filter G4/ISO Coarse 60%, 110361 – Sound Insulating Tube D100

Features & Benefits

Sonair 3 ventilates and filters the air
Independently tested for acoustic performance
Exceptional sound attenuation (up to 58dB)
Air cleaning
Low energy
Meets guidelines for occupant accessibility
Increase occupant awareness of system operation
Discreet design
Supplied with a flexible 1.8m long cable with a 13 amp 3 pin plug fitted with a 3 amp fuse

Technical Information

Product Codes and Specific features

Product Codes

Sonair 3 including G4/ISO Coarse 60% - 352004

Filter (G4/ISO Coarse 60%) - 535083
Sound Insulating Tube D100 - 110361

100mm dia (non-sound insulating) duct 350mm long - 8960097
White external grille - 8960105
Brown external grille - 8960102
Beige external grille - 8960103

Sonair 3 Remote Controller - 535110

All items supplied separately

Performance

Approximate input airflow rate (m³/h) – 20-150m³/h at 0pa
Acoustic Dn,e,w (+/- ) – Dn,e,w (C;Ctr) 58(-1;-2)dB*
Tested to the ‘Noise Insulation Regulations’.
Background ventilation rate of 2400EA when the unit is switched off, recirculation flap closed and with the shutter open

*Sound insulating tube D100 required

Control

The Sonair 3’s portable remote control lets you control the amount of freshly supplied outdoor air. The Sonair 3 has 10 ventilation settings.

Specification

Dimensions - 445 (H) x 340 (W) x 134 (D)

Housing:
Material - Plastic ABS white RAL 9003
Voltage - 220-240V/50 Hz
Energy Consumption - 0.5W at standby to 22.7W at max speed (150m³/h)
Ventilation Capacity - Max is 41.7l/s (150m³/h) with ISO Coarse 60% filter
Duct - Ø100 mm (standard)
Warranty - 2 years

Acoustics

As population density increases, acoustics are becoming an increasingly important factor. Consequently, there is a greater need for sound-attenuating ventilators. Standard or acoustic trickle ventilators cannot provide the necessary attenuation levels, so more sophisticated solutions are required. The Sonair 3 meets these requirements by achieving acceptable noise-reducing levels.

Sound Production

Sound pressure level, LpA; 10 m2 according to ISO 3741.

Speed Setting	Approximate Capacity	Sonair 3
Speed Setting	Approximate Capacity	G4/ISO Coarse 60%
1	20m³/h	<11.3
2	30m³/h	<11.8
3	40m³/h	<15.3
4	50m³/h	20.8
5	60m³/h	24.8
6	70m³/h	29.3
7	85m³/h	33.8
8	105m³/h	39.3
9	125m³/h	43.8
10	150m³/h	49.3
Sound Attenuation according to ISO 10140-2 and BS EN ISO 717-1**
	Dn,e,w(C;Ctr)	58(-1;-2)dB*
