Sonair 2 (Obsolete)
Sonair is ideal for providing mechanical input ventilation when switched on, when switched off it will provide background trickle ventilation that includes a controllable shutter.

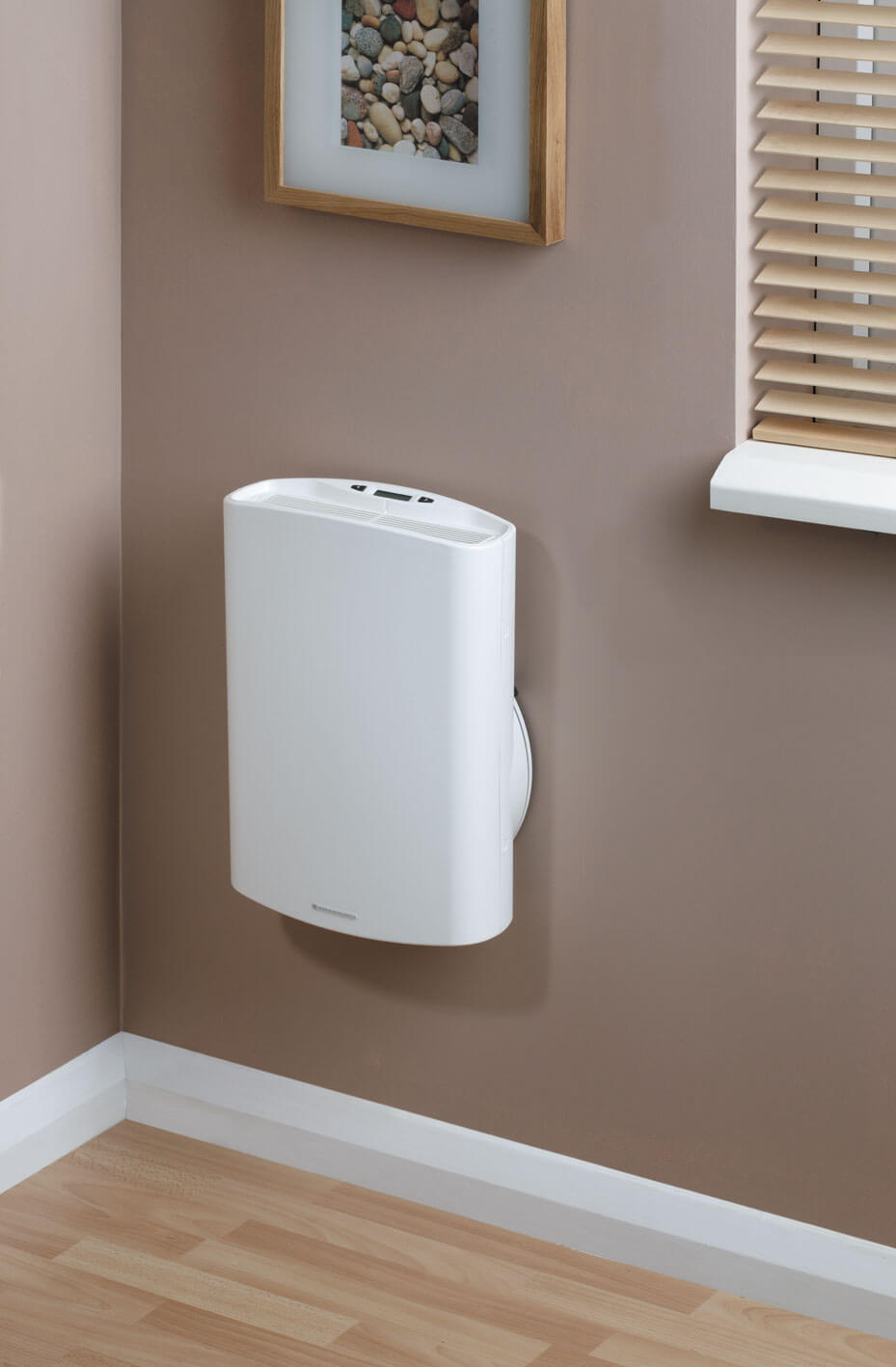

Sonair is designed to be a wall mounted input fan featuring touch control with an LCD display.
Features & Benefits
- Meets guidelines for occupant accessibility
- Increase occupant awareness of system operation
- Discreet design
- Supplied with a flexible cable and a 13 amp plug
Technical Information
Product Codes and Specific features
Product Codes
Sonair F+ including G3/ISO Coarse 45% Filter - S103SAUK
Sonair Filter G3/ISO Coarse 45% - F211
Sonair Filter F6/ISO ePM2.5 50% - F209
Performance
Full test details available on request
Input airflow rate (m3/h) – 28-225
Acoustic D n,e,w (+/-) – 55/56* (Sonair F+).
*depends on filter
Tested to the ‘Noise Insulation Regulations’.
Background ventilation rate of 2500EA when the unit is switched off and the shutter is open.
Acoustics
Acoustics is becoming a more important factor in more densely populated areas, therefore the requirement for sound attenuating ventilators has increased. As standard/acoustic trickle ventilators cannot provide the attenuation levels necessary, more sophisticated solutions are required. The Sonair achieves acceptable noise reducing levels.
Sound Production
Sound pressure level, LpA; 10 m2 according to ISO 3741
Product Information
Dimensions:
445 (H) x 310 (W) x 134 (D)

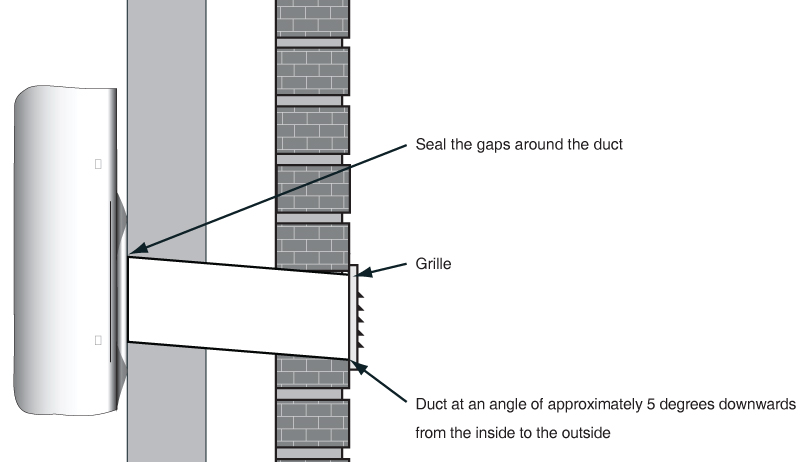

Installation
Housing: Plastic ABS white RAL 9003
Voltage: 220-240V/50 Hz
Energy Consumption: Max. 13 Watt at 17 l/s (60 m³/hour)
Max. 43 Watt at 62.5 l/s (225 m³/hour)
Ventilation Capacity: Max. 62.5 l/s (225 m³/hour) with a G3/ISO Coarse 45% filter
Duct: 100 mm (standard)
Warranty: 2 years
