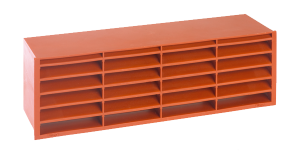

Q Plus High Flow Brick

Air Brick

The Q Plus High Flow Brick is a unique design, as the exceptional airflow performance of a single unit makes it ideal for use in ducted domestic ventilation systems, replacing conventional and unsightly airbricks at least twice the size.

A cost effective alternative recommended for use with Titon Q Plus Best Practice MVHR and CME products, the Q Plus High Flow Air Brick is designed to be built into the brickwork during construction. It can be supplied with the appropriate ducting components to bridge the cavity, making it easy to connect to the ventilation system once installed.

TA350,-,Air,Brick,TA356,-,Bezel,for,TA350,Q,Plus,High,Flow,Brick,Plastic

Features & Benefits

Unique high flow design equivalent to many brick sized grilles
Cost effective; lower cost than double brick grille and adaptor
Recommended for use with EST Best Practice systems (Titon Q Plus)
Saves time and complication of creating double brick size aperture
Designed to be an integral part of external walls
Q Plus High Flow Brick AAO = 8670mm²
Q Plus High Flow Brick EA = 10602mm²
Can be supplied with short duct length for build in during construction, creating an unobstructed air path

Technical Information

Product Codes and Specific features

Product Codes

TA350 - Air Brick
TA356 - Bezel for TA350 Q Plus High Flow Brick Plastic

Colour Reference (add to end of part number)
/010 - Grey
/093 - Beige
/094 - Terracotta
/315 - Brown
/932 - White

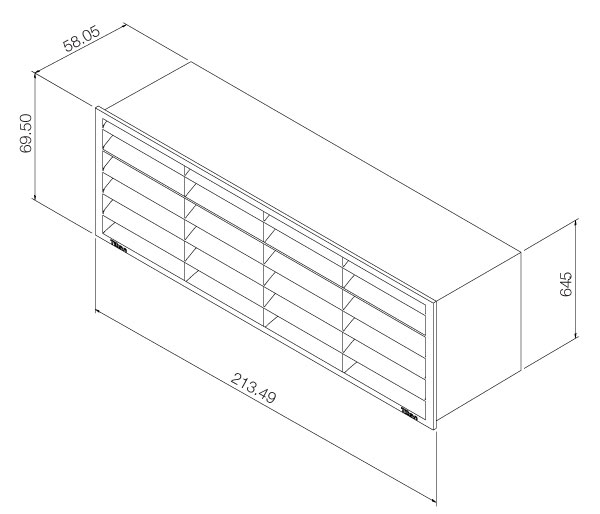

Drawing and Dimensions

Air Brick

Bezel

Specifications

Dimensions: 64.5mm height x 213.5mm width x 58mm depth
Weight: Approx 100g
Finishes: Grey, Beige, Terracotta, Brown or White
Bezel: TA356, White, Grey or Brown
Materials: 20% talc filled polypropylene (UV Stabilised)
Installation: To be installed accordance with the relevant and applicable building regulations.
Maintenance: Wipe with a damp cloth and remove any blockages on a regular basis.
