Multipoint locking espagnolette for side hung or top hung applications with adjustable mushroom cams, designed for profiles with eurogroove.
Available in a range of lengths with two backsets and three cam heights.
The Maco R.A.I.L. (RAIL) Espagnolette is compatible with all standard espag handles with 43mm fixing centres with a 7mm square spindle and is capable of achieving PAS 24.
MA202693,MA202694,MA202695,MA202696,MA202697,MA202698,MA202705,MA202706,MA202707,MA202708,MA202709,MA202710,MA202691,MA202690,MA202689,MA202688,MA202687,MA202686,MA202699,MA202700,MA202701,MA202702,MA202703,MA202704,MA202711,MA202712,MA202713,MA202714,MA202715,MA202716,MA202685,MA202684,MA202683,MA202682,MA202681,MA202679,MA206827,MA206828,MA206829,MA206830,MA206837,MA206838,MA206839,MA206840,MA206831,MA206832,MA206835,MA206836,MA206842,MA206844,MA206845,MA206846
Features & Benefits
- Reverse action locking system which clamps to both sides of the striker plate
- Designed for PAS 24 security windows

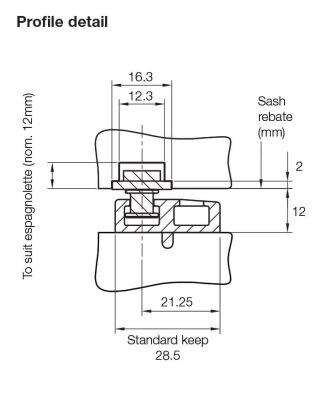

- Fits into eurogroove
- R.A.I.L. Reach version available for low handle height situations
- 7.7, 9 or 10.5mm cam heights
- 20 and 22mm backset versions available
- Available in sizes ranging from 200mm to 1200mm
- Keeps/striker plates are profile related, please phone for suitability
Technical Information
Product Codes and Specific features

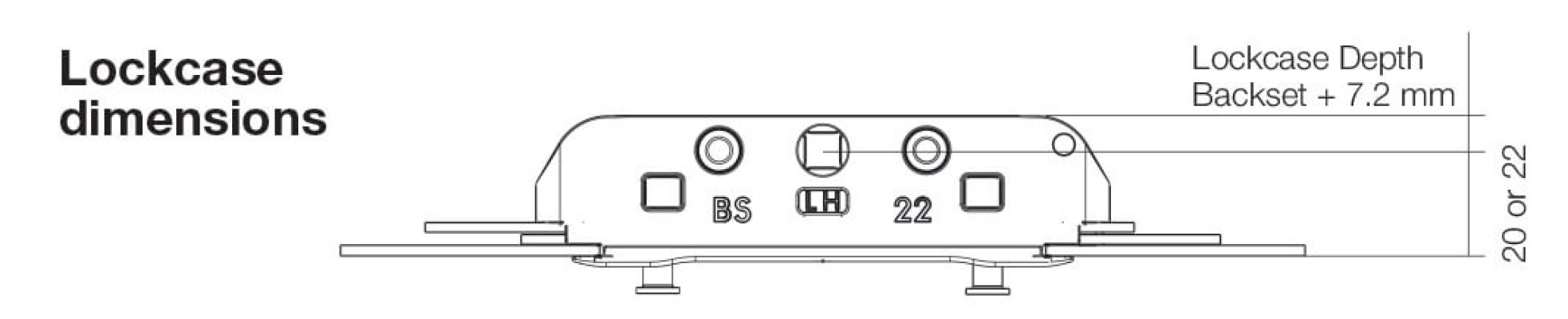

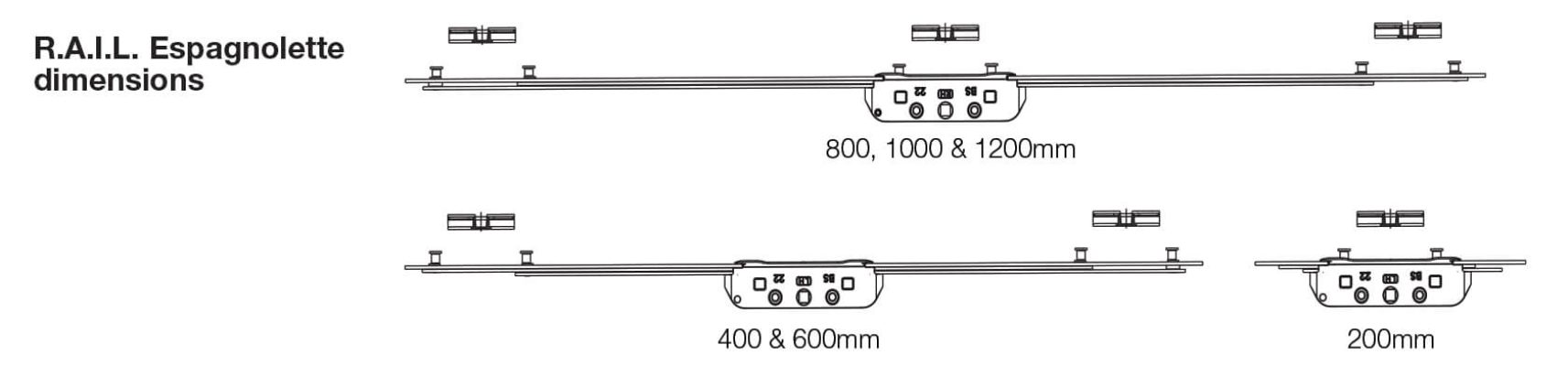

Maco R.A.I.L. Espagnolette – 20mm backset version
| Length | 7.7mm Mushroom Height | 9mm Mushroom Height | 10.5mm Mushroom Height |
| 200 | MA202693 | MA202705 | MA202691 |
| 400 | MA202694 | MA202706 | MA202690 |
| 600 | MA202695 | MA202707 | MA202689 |
| 800 | MA202696 | MA202708 | MA202688 |
| 1000 | MA202697 | MA202709 | MA202687 |
| 1200 | MA202698 | MA202710 | MA202686 |
Maco R.A.I.L. Espagnolette – 22mm backset version
| Length | 7.7mm Mushroom Height | 9mm Mushroom Height | 10.5mm Mushroom Height |
| 200 | MA202699 | MA202711 | MA202685 |
| 400 | MA202700 | MA202712 | MA202684 |
| 600 | MA202701 | MA202713 | MA202683 |
| 800 | MA202702 | MA202714 | MA202682 |
| 1000 | MA202703 | MA202715 | MA202681 |
| 1200 | MA202704 | MA202716 | MA202679 |

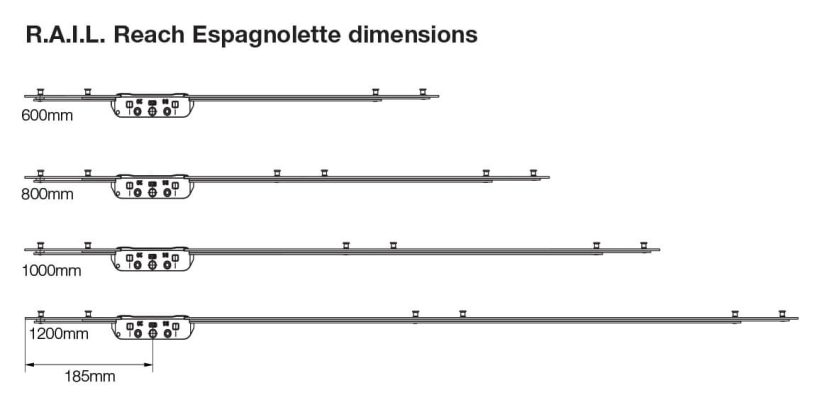

Maco R.A.I.L. Reach Espagnolette – 20mm backset version
| Length | 7.7mm Mushroom Height | 9mm Mushroom Height | 10.5mm Mushroom Height |
| 600 | MA206827 | MA206837 | – |
| 800 | MA206828 | MA206838 | – |
| 1000 | MA206829 | MA206839 | – |
| 1200 | MA206830 | MA206840 | – |
Maco R.A.I.L. Reach Espagnolette – 22mm backset version
| Length | 7.7mm Mushroom Height | 9mm Mushroom Height | 10.5mm Mushroom Height |
| 600 | MA206831 | MA206842 | – |
| 800 | MA206832 | MA206844 | – |
| 1000 | MA206835 | MA206845 | – |
| 1200 | MA206836 | MA206846 | – |
200 to 1200mm espagnolette lengths (Standard)
600 to 1200mm espagnolette lengths (Reach)
Mild steel
Silver Chromate
Tricoat (high corrosion resistance) also available
Espagnolette/Shootbolt – 4mm/No.8 countersunk head
Handle fitting – M5 machine screw or suitable alternative
For Tricoat finish, ensure Tricoat screws are used
(Full test details available on request.) Conforms to BS644,
BS4873 and BS 7412: 2002 corrosion resistance, tested in
accordance with BS EN 1670: 2007 Grade 5 Silver Chromate
1. Espagnolette type 2. Sash size (preferably espagnolette length) 3. Backset size 4. Cam size 5. Profile name and number
