Maco Multi Matic
Tilt and turn window gear (tilt before turn) for windows up to 1630mm wide, 2250mm high and sash weights up to 130kg.

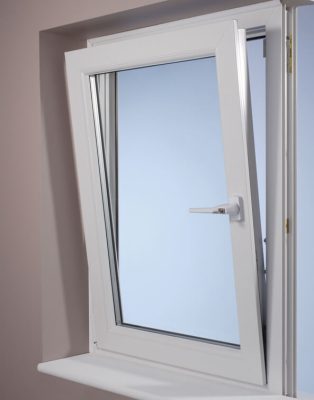

Maco Multi Matic is open in only, has a tilt mode position for ventilation and a turn mode for cleaning. An enhanced security version is available to comply with PAS 24. Also available with concealed hinges (Matic Invisible).
Features & Benefits
- Symmetrical hinge positions for easy fitting
- Anti-slam device
- Three dimensional hinge adjustment
- Adjustable sash lifter prevents sash drop
- No hinge contact with water bar to improve thermal resistance
- Eurogroove fixing corner support allows for decorative rebate edge
- High security version available
- Fits smaller mullion profiles
Technical Information
Product Codes and Specific features
Size capacity
Sash widths 220 – 1630mm
Sash heights 470 – 2250mm
For sizes close to these limits, phone for details
Weight capacity
Maximum sash weight – PVCu 100-120kg (depending on hinge type), timber 130kg
Manufactured from
Mild steel
Standards
BS EN 1670 Class 5
Finish
Silver Chromate
Tricoat (high corrosion resistance) also available
Recommended screws
4mm/No.8 countersunk head
Handle fitting – M5 machine screw or suitable alternative
For Tricoat finish ensure Tricoat screws are used
