Maco Mk2 Shootbolt
Contact Sales 0800 970 4190
Maco Mk2 Shootbolt

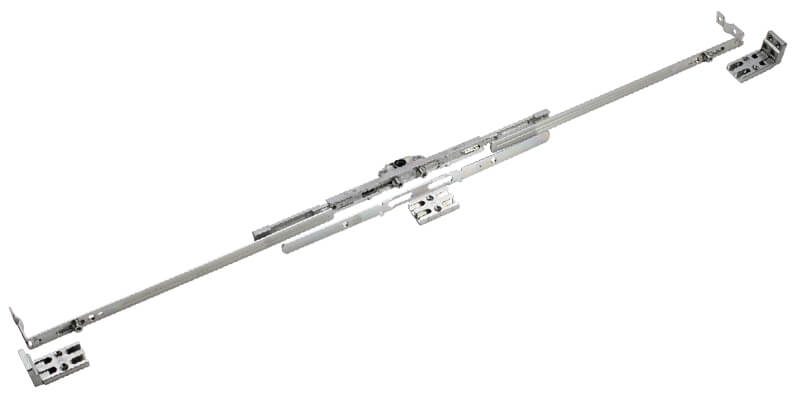

Multipoint locking shootbolt espagnolette for side hung or top hung applications with adjustable shootbolts and mushroom cams, designed for profiles with eurogroove.
The Maco Shootbolt Espagnolette has a separate centre lock box with locking cams and various different types of croppable and non croppable extensions with two backsets and two cam heights.
The Maco Shootbolt Espagnolette is compatible with all standard espag handles with 43mm fixing centres with a 7mm square spindle and is capable of achieving PAS 24. Predominately for use on PVCu profiles.
MA11033,MA11034,MA11035,MA11037,MA58140,MA58141,MA58142,MA58143,MA58144,MA58145,MA58146,MA58147,MA58148,MA11804,MA102858
Features & Benefits
- Designed to give greater security in line with PAS 24 and Secured By Design
- Suitable for use on windows with a 16mm eurogroove
- Integral shootbolts with selectable 10mm or 13mm bolt throw
- Interlocking keeps for improved strength
- Suitable for sash rebate sizes from 500mm to 1400mm (non croppable and 382mm to 1400mm (croppable)
- 20mm or 22mm backset versions available
- 7.7mm or 9 mushroom cam heights
- Croppable version can be used to offer a low handle height on sash for limited access situations
- Blanking plug available to remove night-vent position on keep
- Features centre locking point
- Adjustable compression via mushroom headed cams
- Keeps / striker plates are profile related, please phone for suitability

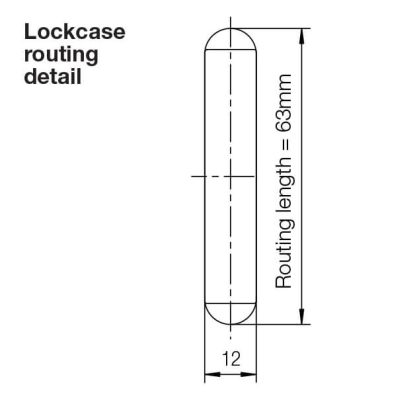

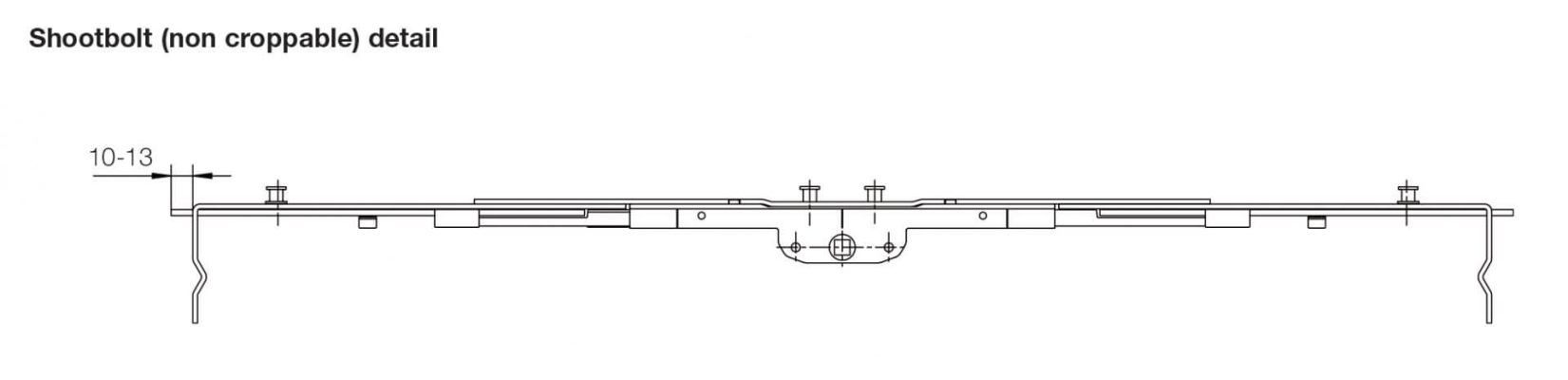

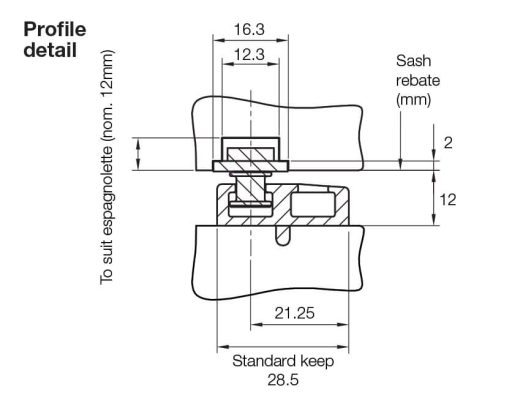

Technical Information
Product Codes and Specific features
Maco Mk2 Shootbolt Espagnolette – rapid fix non croppable lock box
| Lockbox | Mushrooms | 7.7mm Mushroom Height | 9mm Mushroom Height |
| 20mm Backset | 2 | MA11033 | MA11035 |
| 22mm Backset | 2 | MA11034 | MA11037 |
Other croppable codes on request
Maco Mk2 Shootbolt Espagnolette – rapid fix non croppable extension pieces
| Extension pieces to suit sash rebate size | Size | Mushrooms Per Extension | 7.7mm Mushroom Height | 9mm Mushroom Height |
| 500-600 | Gr.1 | 0 | MA58140 | MA58140 |
| 601-700 | Gr.2 | 1 | MA58141 | MA58149 |
| 701-800 | Gr.3 | 1 | MA58142 | MA58150 |
| 801-900 | Gr.4 | 1 | MA58143 | MA58151 |
| 901-1000 | Gr.5 | 1 | MA58144 | MA58152 |
| 1001-1100 | Gr.6 | 1 | MA58145 | MA58153 |
| 1101-1200 | Gr.7 | 1 | MA58146 | MA58154 |
| 1201-1300 | Gr.8 | 1 | MA58147 | MA58155 |
| 1301-1400 | Gr.9 | 1 | MA58148 | MA58156 |
| 250mm extension piece | – | 1 | MA11804 | MA101530 |
| 400-600mm extension piece | – | 1 | MA102858 | MA102859 |
500 -1400mm sash rebate size
250mm extension available
400 to 600mm extension available
Mild steel
Silver Chromate
Espagnolette/Shootbolt – 4mm/No.8 countersunk head
Handle fitting – M5 machine screw or suitable alternative
(Full test details available on request.) Conforms to BS644, BS4873 and BS 7412: 2002 corrosion resistance, tested in accordance with BS EN 1670: 2007 Grade 5 Silver Chromate.
1. Espagnolette type  2. Sash rebate size  3. Backset size  4. Cam size  5. Profile name and number
