Maco MK-V

Shootbolt espagnolette

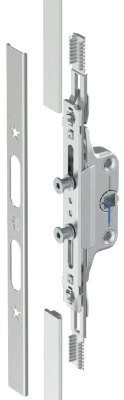

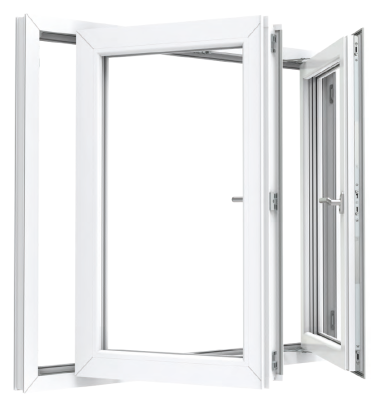

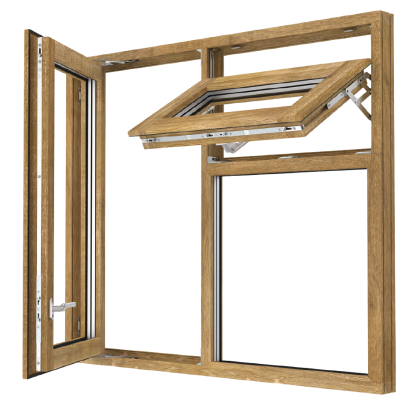

Telescopic and croppable shootbolt espagnolette allows for the fabrication of a wide range of easy to operate window styles from a single high security locking range.

5 telescopic and 5 croppable sizes, covering an application range of 500mm up to 1640mm, with one backset (21mm) and two cam heights (7.7 & 9mm). The modular design allows extension pieces to be fitted to increase the sash rebate size, to position the handle off-centre, to increase the number of striker plates and to be used on French casement windows.

MKV Telescopic
The ideal solution for high volume window production. The unique design enables the MKV to simply be removed from the packaging before extending to size and inserting into the Eurogroove. The MKV makes fabrication a fast, trouble free assembly process.

MKV Croppable
Gives all of the security benefits of the telescopic version, whilst giving an increased flexibility to the style of windows that are being manufactured. As well as a central handle position, MKV croppable is ideal for windows that are required to meet with the disability discrimination act (DDA) standards through the REACH extension. Centre locks can be installed for tall top hung windows.

MA229892,MA229893,MA229894,MA229895,MA229896,MA229897,MA229898,MA229899,MA229900,MA229901

Features & Benefits

Suitable for sash rebate sizes from 500mm up to 1,640mm
7.7mm or 9mm mushroom cam heights
Adjustable, stronger mushroom cam with greater levels of adjustment of ±1 mm.
New T15 torx key adjustment, more stable to adjust.
Smaller designed lockcase minimises machining time.
Unique design spindle follower
Lockcase centralisation pins
Slimline lockcase depth reduces the depth of machining within the sash.
One backset size for all profile handle positions (20, 21 and 22mm)
Tested to exceed the requirements of PAS 24
Endurance tested to Grade 5, 25,000 cycles EN 13126 Part 4

Technical Information

Product Codes and Specific features

Details

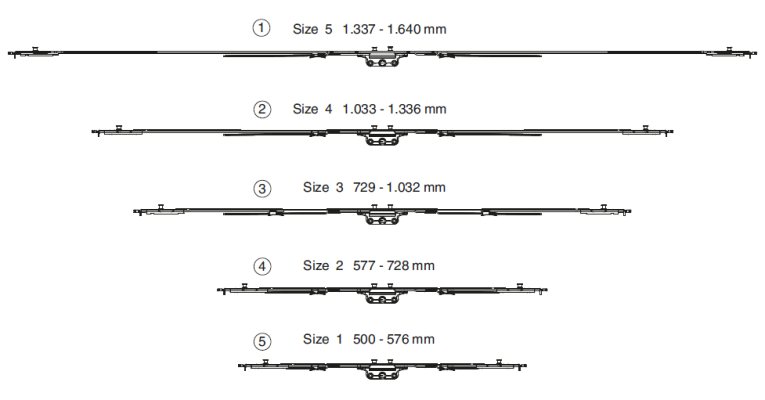

7mm Mushroom Product Code:	Size	Overall Length (mm)	Sash Rebate (mm)	Profile Striker Plates	Combi Striker Plates
MA229892	1	500	500-576	1	2
MA229893	2	576	577-728	1	2
MA229894	3	728	729-1032	1	2
MA229895	4	1032	1033-1336	1	2
MA229896	5	1336	1337-1640	1	2

9mm Mushroom Product Code:	Size	Overall Length (mm)	Sash Rebate (mm)	Profile Striker Plates	Combi Striker Plates
MA229897	1	500	500-576	1	2
MA229898	2	576	577-728	1	2
MA229899	3	728	729-1032	1	2
MA229900	4	1032	1033-1336	1	2
MA229901	5	1336	1337-1640	1	2

Size capacity

500mm to 1,640mm espagnolette lengths

Manufactured from

Mild steel

Finish

Silver Chromate

Recommended screws

Espagnolette/Shootbolt – 4mm/No.8 countersunk head
Handle fitting – M5 machine screw or suitable alternative

Performance

(Full test details available on request.) Conforms to BS644, BS4873 and BS 7412: 2002 corrosion resistance, tested in accordance with BS EN 1670: 2007 Grade 5 Silver Chromate.
