ILM – Inline Fan Single Kit

Inline mixed flow fan ‘double’ ducting kit

The ILM Fan Single Kit is ideal for an all in one overheating solution.

It is designed to remove excess heat from properties that can overheat in summer.

It can help support compliance with the requirements of UK Building Regulations Part O and Part F for overheating and ventilation.

TP638

Features & Benefits

Extract ventilation system for loft or low profile ceiling applications
‘Complete’ kit for single extract
Designed for high-pressure air ducts with high airflow
Low noise levels
Complete kit with fan, ducting, valve & clips
Energy efficient mixed flow impeller
Roof terminal available as an optional extra; please enquire for more information

Technical Information

Product Codes and Specific features

Product Codes and Specification

Description

ILM - Inline Fan Single Kit

The kit includes:

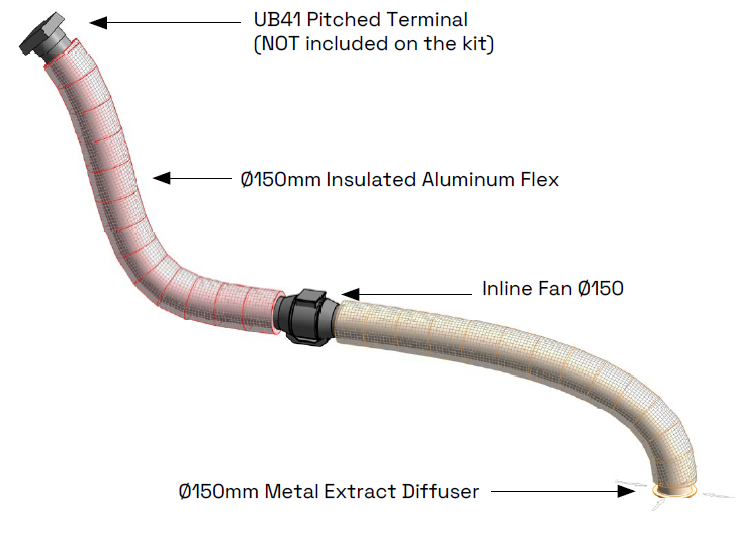

1 x ILM - Inline Fan Ø150
1 x 152Ø x 5m Insulated Aluminium Flex
1 x 150Ø Metal Round Extract Diffuser White
4 x Jubilee Clips 55-170mm

Product Code

Product Model	Product Code
ILM - Inline Fan Single Kit	TP638

Standards

Electromagnetic Compatibility (EMC) Directive 2014/30/EU. Low Voltage Directive (LVD) 2014/35/EU.
UKCA and CE certified.

Specification

Drawing & Dimensions:

Product Code	Product Model	ØD	ØD1	B	H	L	Weight
TP637	ILM - Inline Fan Ø150	148	187	220	251	289	3.18 kg

Finish: Low-flammable polypropylene
Impeller: Mixed Flow Impeller
Guarantee Period: 1 Year
Electrical: 230V - 50/60Hz, 3A fuse
Maintenance: Service subject to local environment - see product manual – see product manual.

Technical Overview

Specification	Ø150 TP637
Voltage [V / 50-60 Hz]	1 ~ 230
Power [W]	42 / 50
Current [A]	0.19 / 0.22
Maximum Air Flow [l/s (m³/h)]	119 (430) 156 (560)
RPM [min⁻¹]	1940 / 2620
Sound Pressure @ 3m [dBA]	37 / 46
Max. Air Temperature	60°C
SEC Class	B
Ingress Protection Rating	IPX4
Motor IP Rating	IPX
