Hit & Miss Ventilator
The Titon Hit & Miss Ventilator provides a simple and effective solution for background ventilation in aluminium, timber or uPVC window systems.
Designed to fit neatly over a 16mm slot, it delivers controlled airflow while maintaining the security and integrity of the window. The ventilator features a durable external canopy with integrated mesh, helping to prevent the ingress of rain and insects while still allowing fresh air to circulate naturally.
Manufactured in four standard lengths, the Hit & Miss Ventilator offers flexibility for a wide range of installations and is particularly well suited to retrofit applications
where additional ventilation is required. Its high-security design allows windows to remain safely ventilated whilst closed, making it ideal for night ventilation in residential or commercial buildings.
With simple fixing and quick installation, it provides a practical, low-maintenance way to improve indoor air quality.
TH278,TH30.TH31,TH32
Features & Benefits
- Fits over 16mm slot
- Canopy with mesh protects against ingress of rain and insects
- Manufactured in four standard lengths
- High security
- Ideal for night ventilation
- Simple fixing
- Available air openings quoted are for vent and canopy combination
- Ideal for retro-fit applications
- Covered by Titon’s 10 Year Extended Mechanical Warranty.
Technical Information
Product Codes and Specific features

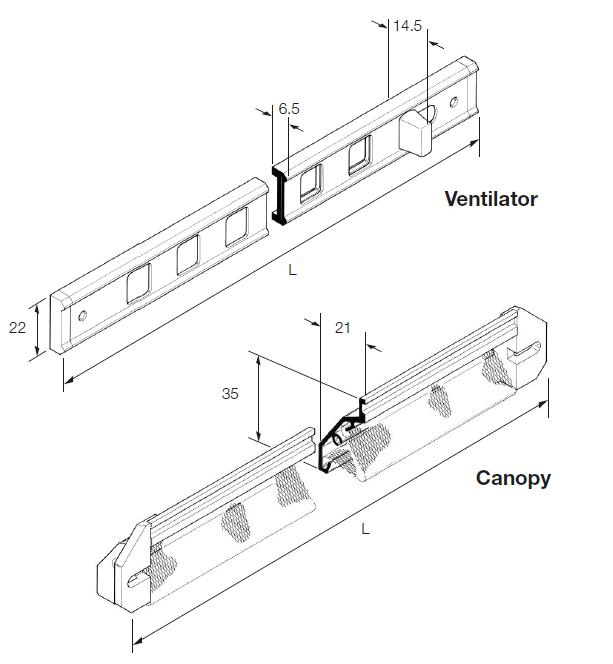

Technical Details
| Product Code | Length (mm) | EA (mm2) | Free Area (mm2) |
| TH278 | 275 (canopy 288mm) |
1500 | 1355 |
| TH30 | 267(canopy 380mm) | 2000 | 2026 |
| TH31 | 505 (canopy 514mm) | 2700 | 2778 |
| TH32 | 689 (canopy 695mm) | 3900 | 3983 |
Manufactured from
Vent:
Aluminium 6063AT6 (component parts - Acetal Resin)
Canopy:
Aluminium 6063HITT6 or PVCu (component parts - Acetal Resin)
