Hexalok

High security multi point lock for sliding doors

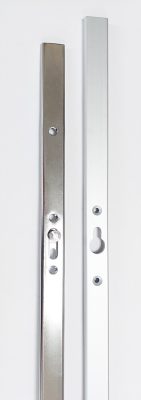

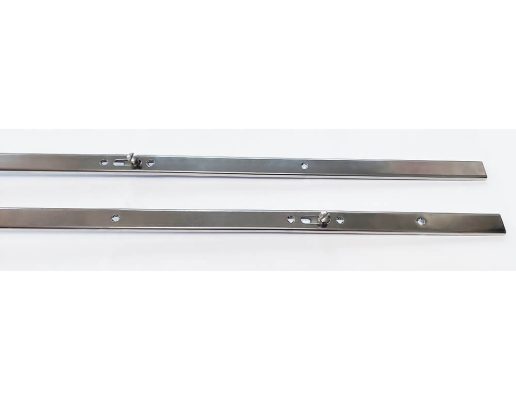

Hexalok™ is an exceptionally strong, high security SIX point multi-point lock for inline sliding doors.

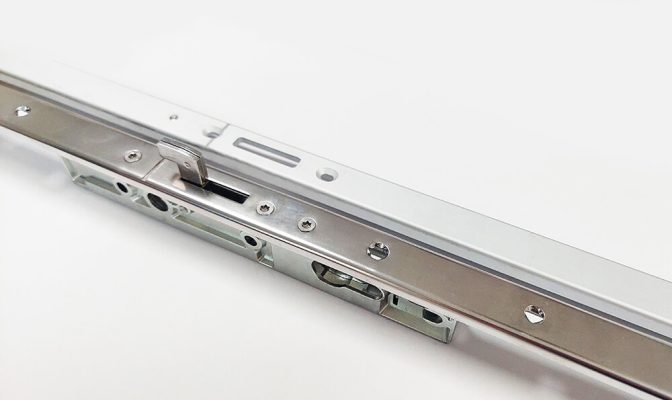

Titon’s new multi-point lock boasts a centre hook bolt and FIVE additional mushroom cams providing extra secure locking and prevents lifting of the sliding doors. It also has unique Torx adjustment to security cams for increased cam strength.

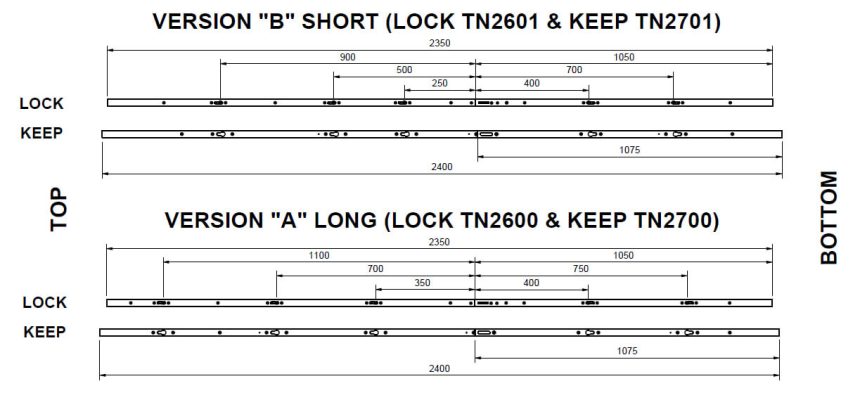

Hexalok™ is available in two versions for optimum cam positioning: Version A (Long) – locking cams spread further apart, and Version B (Short) – cam positions are more closely spaced.  The removable lockcase with its stainless steel gear simplifies maintenance and replacement.

Hexalok™ is supplied with standard cams, security cams (1mm less clearance) and 2mm spacers for increased cam height.

Hexalok,Hexalock,Pentalock,Sobinco,Penta,Lock,multi,point,lock,for,doors,patio,door,look,french,window,door,lock,sliding,door,lock,Hexalok™,Lock,Version,“A”,Long,TN2600,Hexalok™,Lock,Version,“B”,Short,TN2601,Hexalok™,Keep,Version,“A”,Long,/,Black,Anodised,TN2700,/,038,Hexalok™,Keep,Version,“B”,Short,/,Black,Anodised,TN2701,/,038,Hexalok™,Keep,Version,“A”,Long,/,Satin,Silver,Anodised,TN2700,/,555,Hexalok™,Keep,Version,“B”,Short,/,Satin,Silver,Anodised,TN2701,/,555

Features & Benefits

  • Both sizes comprise five cams and centre hook bolt
  • Supplied with x5 standard cams and x5 security cams (1mm less clearance) and 2mm spacers for increased cam height
  • Torx adjustment to security cams for increased cam strength

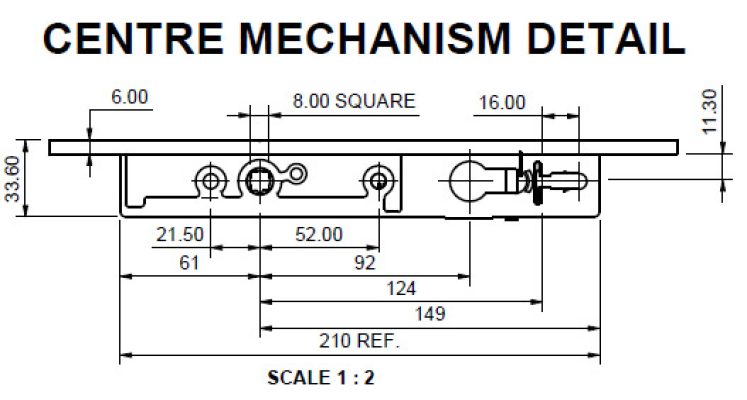

  • Removable lockcase for ease of maintenance
  • Slotted fixing holes in lockcase allow flexibility of choice of handles
  • Central alignment mark on faceplate and keep
  • Use with Titon’s one-piece satin anodised keep (sold separately)

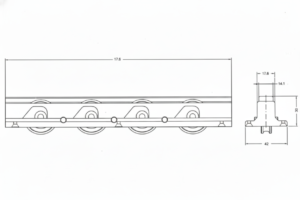

  • Roller for Horizontal Sliding Doors available separately.



Available only from Titon:

  • Free expert advice and technical support available
  • Part numbered packaging for ease of identification.

Technical Information

Product Codes and Specific features

Product Product Code
Hexalok™ Lock Version “A” Long TN2600
Hexalok™ Lock Version “B” Short TN2601
Hexalok™ Keep Version “A” Long / Black Anodised TN2700/038
Hexalok™ Keep Version “B” Short / Black Anodised TN2701/038
Hexalok™ Keep Version “A” Long / Satin Silver Anodised TN2700/555
Hexalok™ Keep Version “B” Short / Satin Silver Anodised TN2701/555
  • 24mm Faceplate width
  • 2350mm Overall Length
  • 2400mm Overall keep length.
  • 304 Grade Stainless Steel faceplate
  • Stainless Steel gear for superior performance
  • Salt spray tested to 480 hrs BS EN 1670 (Grade 5)
  • Tested to 50,000 handle lift and locking operations
  • PAS24 Mechanical loading compliant
  • Recommended screws: Fit in accordance with systems company recommendations.
  • Black anodised
  • Satin silver anodised
