Ducting – Semi Rigid (Ø92mm & Ø75mm)

Semi–Rigid ducting designed for domestic ventilation systems is modern, clean, leak-free and easy to install. It is an alternative to solid plastic ducting that has traditionally been used to move air around a home. In contrast, semi-rigid uses a radial approach that allows for smaller duct diameter making it much easier to accommodate in tight spaces, especially in combination with the duct flexibility.

Titon can supply semi-rigid ducting suitable for domestic ventilation applications. This is not widely used in the UK, however, it is clear semi-rigid ducting can offer a number of benefits over the traditional rigid product:

• Easier to fit – via ‘dry’ joints which seal tightly and do not require sealant and tape.
  In addition, ducting is supplied in long lengths, which means usually only two cuts and two joints are required for each duct run to a room. This drastically reduces the number of different duct items required. This can result in a much quicker and cheaper installation than conventional methods.

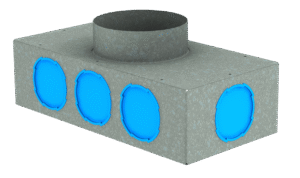

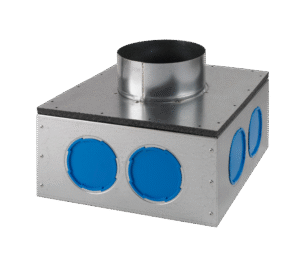

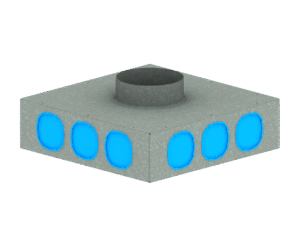

• Easier to commission – Central flow plenums feature adjustable restriction rings that allow balancing of airflow around dwelling and maker it easier for final commissioning at terminals.
• Improved performance – Flow is smooth, while leaks and restrictions are eliminated, so lower settings on the unit can be utilised. A better installed system should also develop fewer problems in the future.

There are considerations to be made in order to achieve these advantages – however, with forethought these can be incorporated to allow a semi-rigid ducted system to be used:

• Design ahead – Some extra room is required near the ventilation unit for the inclusion of the plenum boxes, so this has to be discussed at the point of house design.
• Duct runs – As each room is ducted separately, which helps control specific airflow, duct layout and provision for it must be planned.
• Familiarity for contractors – It will take one or two installations before contractors become used to the system and can then reap the benefits of its simplicity.
• Cost – The system parts are typically more expensive per property than rigid ducting, however savings can be made due to the reduced labour cost in installing each system.
