Duct Pre-Heater
Titon’s Duct Pre-Heaters are designed to heat clean air in conjunction with Titon’s HRV cold climate ventilation units.
Duct Pre-Heaters uses include tempering fresh air in ventilation systems, supplying heated air to rooms and boosting supply air temperature in heat recovery units – including Titon’s Passivhaus approved MVHR unit.
Casings are made from aluzinc coated steel, which is ideal for high temperature. Heating elements tubing is made from stainless steel AISI 304.
All Duct Pre-Heater are installed with 2 protection thermostats, screw terminals for easy connection and rubbers seals to fit to ducting.
All Duct Pre-Heater have two-stage overheat protection:
- the first stage switches on when the temperature reaches 50°C (resets automatically).
- the second stage switches on when the temperature reaches 100°C (is reset manually with push button on the casing).
Heaters can be installed vertically or horizontally. Maximum output air temperature 50°C.
Designed for installation in metal ducting. There must be a minimum clearance of 50mm to any combustible material.
EKA-NV125-0.9,EKA-NV125-1.5,EKA-NV150-1.5,EKA-NV160-1.2,EKA-NV160-1.5
Features & Benefits
- Built in temperature control
- Aluzinc casing
- Stainless steel heating elements
- Rolled rubber seals for duct connection
- Two stage overheat protection
- Built in temperature control
- Manual reset button when temperature reaches 100°C
- Compatible with Titon’s cold climate HRV units
- IP44 Rating
- To be used with metal ducting only
Technical Information
Product Codes and Specific features
Product Codes

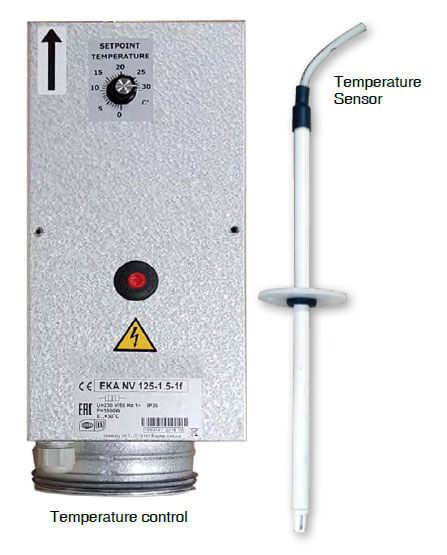

EKA-NV125-0.9 – Ø125mm 0.9kW electric Duct Pre-Heater with temperature control, including remote duct temperature sensor
EKA-NV125-1.5 – Ø125mm 1.5kW electric Duct Pre-Heater with temperature control, including remote duct temperature sensor
EKA-NV150-1.5 – Ø160mm 1.5kW electric Duct Pre-Heater with temperature control, including remote duct temperature sensor
EKA-NV160-1.2 – Ø160mm 1.2kW electric Duct Pre-Heater with temperature control, including remote duct temperature sensor
EKA-NV160-1.5 – Ø160mm 1.5kW electric Duct Pre-Heater with temperature control, including remote duct temperature sensor

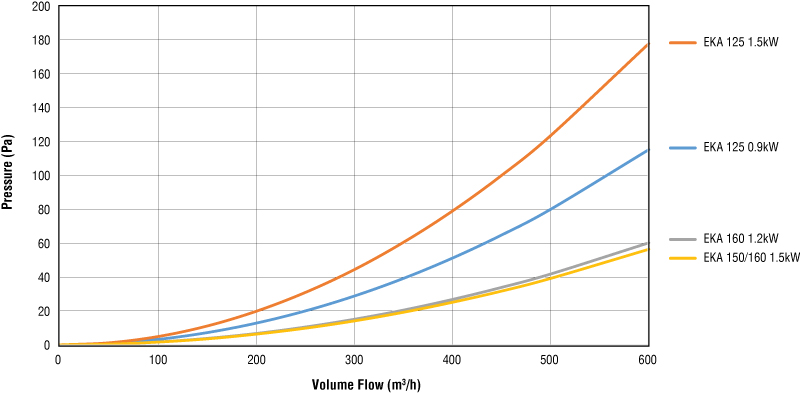

Performance
| Product Type |
Diameter | Min. airflow (m3/h) |
Min. airflow (l/s) |
Voltage (50 Hz) |
Power kW |
| EKA-NV125-0.9 | 125 | 70 | 19 | 1~230 | 0.9 |
| EKA-NV125-1.5 | 125 | 70 | 19 | 1~230 | 1.5 |
| EKA-NV150-1.5 | 160 | 110 | 30 | 1~230 | 1.5 |
| EKA-NV160-1.2 | 160 | 110 | 30 | 1~230 | 1.2 |
| EKA-NV160-1.5 | 160 | 110 | 30 | 1~230 | 1.5 |
Specification

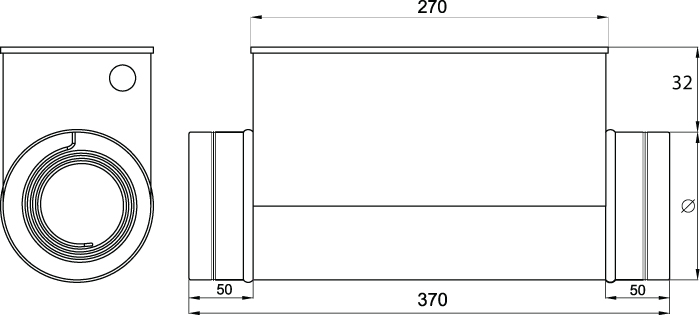

Dimensions: 370mm length, diameter plus 32mm height.
Dimensions in mm.
Material: Aluzinc casing
Guarantee period: 2 years
Electrical: 230V ~ 50/60Hz
Installation: Install in accordance with regulatory requirements, such as the Domestic Ventilation Compliance Guide (England & Wales) and the Residential Ventilation Association recommendations.
Please refer to our cold temperature MVHR product manual for further guidance on installation.
