Air Valve (Extract)

For use with Titon‘s HRV Q Plus and CME Q Plus Ranges

The round white metal ceiling air extract valve is manufactured from white epoxy powered coated steel. The valve has a male spigot to fit inside 100/125/150mm ducting.

The extract air valve is fully adjustable and has a locking nut to fix the position of the controlled disc upon commissioning.

The valve is supplied complete with a fixing body with pre-drilled holes for installation.

The valve engages/disengages to the fixing body by a quarter turn clockwise/anticlockwise.

8960227,8960230,8960234

Technical Information

Product Codes and Specific features

Ceiling Metal Vent Diffuser – Extract
Part
Number
8960227 8960230 8960234
Size 100mm 125mm 150mm
Colour RAL9016 RAL9016 RAL9016
Operating Temperature
Max +60°C +100°C +60°C
Min -15°C -20°C -15°C
Weight 270g 343g 270g

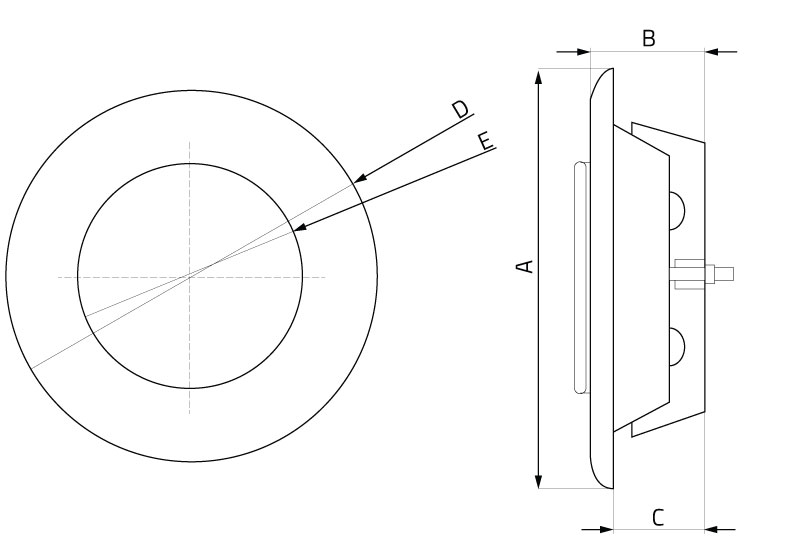

100mm 125mm 150mm
ØA 138 163 201
B 40 44 51
C 32 36 38.5
ØD 138 163 202
ØE 74 98.3 119

All dimensions are in mm

Pressure loss with control disc open to 10mm
